RFC 4800 Series Touchless Magnetic Rotary Position Sensor
RFC 4800 Series Touchless Magnetic Rotary Position Sensor
SKU:RFC-74966f
Advanced touchless magnetic sensor for precise position & speed measurement with CANopen Interface. IP69K sealed & programmable parameters.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
RFC 4800 Series Touchless Magnetic Rotary Position Sensor
$349.99
Quantity: 1
Claim Your Seller Account
RFC 4800 Series Touchless Magnetic Rotary Position Sensor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

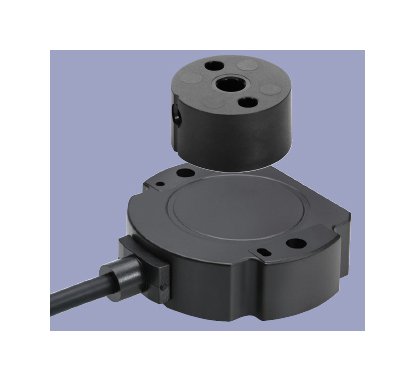

The RFC 4800 Series Touchless Magnetic Rotary Position Sensor with CANopen Interface offers precise position and speed measurement capabilities for a wide range of applications. With a measuring range of 360º and a resolution of 14 bits, this sensor provides accurate and reliable data. It features programmable parameters including position, speed, working areas, and more. Sealed up to IP69K, it ensures durability in harsh environments. The sensor meets stringent industry standards for EMC compatibility and functional safety.
Product Specifications
Specifications Baud Rate
50 to 100 Kbaud
Specifications Bus Termination Internal
120, optional, see ordering specifications O
Specifications Cross Section Cable
20 AWG | 0.5 mm²
Specifications Current Consumption Without Load
< 100 mA
Specifications Dc Overvoltage Protection
< 45 (Permanent) V
Specifications Dc Supply Voltage Ub
12/24 V
Specifications Emc Compatibility
CISPR 25 Radiated emission class 3 | ISO 11452-2 Radiated EM RF fields, Absorber hall: 100 V/m | ISO 11452-5 Radiated EM RF fields, Stripline: 200 V/m | ISO 7637-2 pulse 1, 2a, 2b, 3a, 3b, 4 (24 V systems), 5: SG 5 | ISO 7637-3 Transient transmission: SG 4 | ISO TR 10605 Packaging and Handling + Component Test: 8 kV
Specifications Functional Safety
If you need assistance in using our products in safety-related systems, please contact us
Specifications Hysteresis
0.36 º
Specifications Independent Linearity Fs
0.5 %
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Mean Time To Failure Mttf
one Channel
Specifications Measured Variables
Position and Speed
Specifications Measurement Range Speed
0 to 25000
Specifications Measuring Range
360 º
Specifications Node Id
0 to 127
Specifications Number Of Channels
1 | 2
Specifications Operation Temperature
-40 to 105 º C
Specifications Output Signal Protocol
CANopen protocol to CiA DS-301 V4.2.0, Device profile DS-406 V3.2 Encoder Class C2, LSS services to CiA DS-305 V1.1.2
Specifications Programmable Parameter
Position, speed, cams, working areas, rotating direction, scale, offset, node-ID, baud rate
Specifications Repeatability
0.36 º
Specifications Resolution Across 360 Position
14 bits
Specifications Resolution Speed
360
Specifications Reverse Voltage
Yes
Specifications Short Circuit Protection
Yes (vs. GND and supply voltage)
Specifications Temperature Error
0.2 %
Specifications Update Rate
1 kHz
