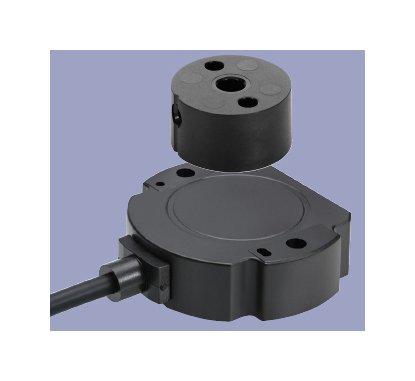

Enhance mobile applications with the RFC 4800 Series Touchless Magnetic Rotary Position Sensors. Featuring a permanent magnet design, these sensors eliminate mechanical wear and offer sizes ranging from 13 to 90 mm for versatile application coverage. With single and redundant versions, programmable switch outputs, and IP69K sealing, these sensors ensure reliable and precise angle measurements for industrial and institutional needs.
Product Specifications
Specifications Cross Section Cable
26 AWG | 0.14 mm²
Specifications Cross Section Wire
0.5 mm² | 20 mm²
Specifications Dc Supply Voltage Ub
5 V | 12 V | 24 V

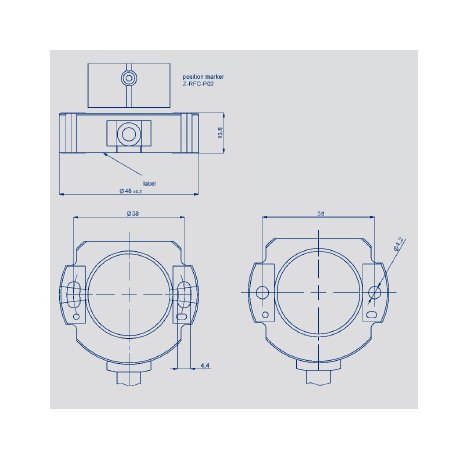

Specifications Dimensions
RFC 4800 Series Analog Touchless Magnetic Rotary Position Sensors for Industrial Applications 3
Specifications Electrical Connection
Cable versions and assembled connectors on request | 251: Cable 4-pol., 0,5 m unshielded, one-channel and partly redundant | 252: Cable 4-pol., 1 m unshielded, one-channel and partly redundant | 256: Cable 4-pol., 3 m unshielded, one-channel and partly redundant | 260: Cable 4-pol., 5 m unshielded, one-channel and partly redundant | 270: Cable 4-pol., 10 m unshielded, one-channel and partly redundant | 401: Lead wires 3 x L = 0,5 m (0,5 mm2), single | 411: Lead wires 4 x L = 0,5 m (0,5 mm2), partly redundant | 421: Lead wires 6 x L = 0,5 m (0,5 mm2), fully redundant | 551: M12 connector 4-pin, with cable L = 0.15 m unshielded, one-channel and partly redundant
Specifications Functional Safety
If you need assistance in using our products in safety-related systems, please contact us
Specifications Hysteresis
< 0.1 º
Specifications Independent Linearity Fs
= 0.5 %
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Mean Time To Failure Mttf
111 Years | 288 Years | 290 Years | 98 Years
Specifications Measuring Range
06 | 12 | 18 | 24 | 36
Specifications Mechanical Version
4801: Elongated hole mounting for easy adjustment | 4802: Round hole mounting
Specifications Number Of Channels
6: one-channel 1x supply voltage Ub / 1 x output | 7: partly redundant 1 x supply voltage Ub / 2 x output | 8: fully redundant 2 x supply voltage Ub / 2 x output (only at supply voltage Ub = 5 V)
Specifications Output Characteristics

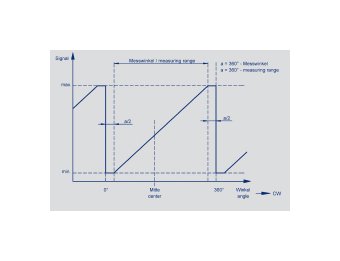

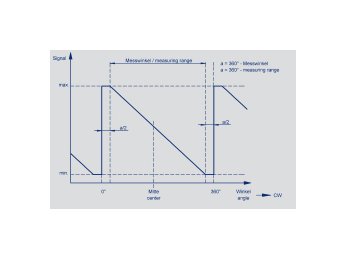

Crossed output channel 1 rising cw (fully redundant) | Crossed output channel 1 rising cw (partly redundant) | Other characteristics on request | Rising ccw | Rising cw
Specifications Output Signal Supply Voltage Ub 1224 V
0.25 to 4.75 V | 0.5 to 4.5 V | 4 to 20 mA (only one-channel)
Specifications Output Signal Supply Voltage Ub 5 V
0.25 to 4.75 V ratiometric to supply voltage Ub | 0.5 to 4.5 V ratiometric to supply voltage Ub
Specifications Repeatability
0.1 º
Specifications Resolution
12 bits
Specifications Reverse Voltage
Yes
Specifications Short Circuit Protection
Yes (vs. GND and supply voltage)
Specifications Supply Voltage
Supply voltage Ub = 12/24 V (9.0 to 34.0 V) | Supply voltage Ub = 5 V (4.5 to 5.5 V)
Specifications Temperature Error At Measuring Range 180 Up To 36
0.41 % | 0.66 %
Specifications Temperature Error At Measuring Range 30 Up To 170
0.825 % | 1.24 %
Specifications Temperature Range
-40 to 105 ºC | -40 to 125 ºC
Specifications Current Consumption Without Load
15 mA
Specifications Update Rate
5 kHz
