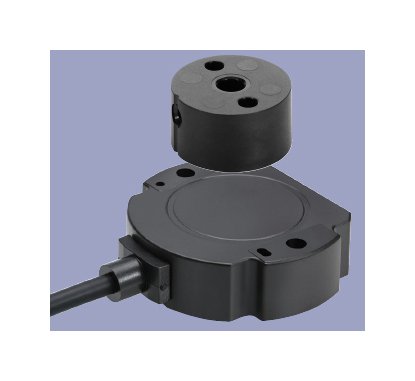

RFC 4800 Touchless Magnetic Rotary Position Sensor
RFC 4800 Touchless Magnetic Rotary Position Sensor
SKU:RFC-3f67fd
Enhance precision in industrial machinery with the RFC 4800 Touchless Magnetic Rotary Position Sensor.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
RFC 4800 Touchless Magnetic Rotary Position Sensor
$149.99
Quantity: 1
Claim Your Seller Account
RFC 4800 Touchless Magnetic Rotary Position Sensor
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial machinery with the RFC 4800 Touchless Magnetic Rotary Position Sensor. Featuring touchless hall technology and a wear-free design, this sensor ensures precise measurements from 0 to 30 degrees with a resolution of 12 bits. With high protection class IP67/IP6K9K and robust construction, it excels in agricultural, manufacturing, and marine applications. Offering interfaces like Voltage, SSI, and CANopen, along with EMC compatibility and a wide temperature range of -40 ºC to +125 ºC, this sensor is a reliable solution for industrial environments.
Product Specifications
Specifications Applications
Agricultural and forestry machinery | Construction machinery | Industrial trucks | Manufacturing Engineering | Marine applications | Medical engineering | Mobile working machines | Packaging machinery | Sheet metal and wire machinery | Textile machinery
Specifications Approximate Weight
50 g
Specifications Continuous Mechanical Travel
360 º
Specifications Cross Section Cable
26 AWG | 0.14 mm²
Specifications Dc Supply Voltage Ub
5 V | 24 V

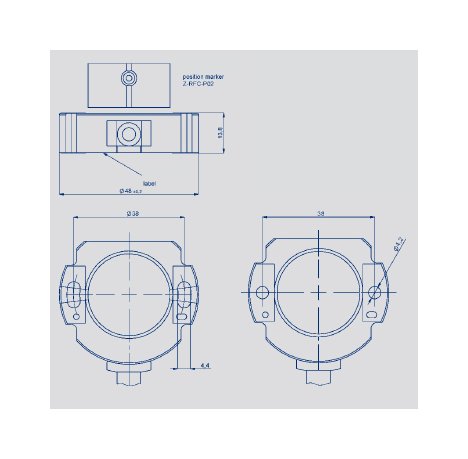

Specifications Dimensions
RFC 4800 Series Analog Touchless Magnetic Rotary Position Sensors for Industrial Applications 3
Specifications Electrical Connection
Cable versions and assembled connectors on request | Cable 4x 0.14 mm², AWG 26, TPE, shielded (analog voltage / current CE) | Cable 4x 0.14 mm², AWG 26, TPE, unshielded (analog voltage / current mobil) | Cable 4x 0.5 mm², AWG 20, TPE, shielded (CANopen) | Cable 5x 0.14 mm², AWG 26, PUR, shielded (SPI) | Cable 8x 0.25 mm², AWG 24, TPE, shielded (SSI, Incremental) | Wire 0.5mm², AWG 20, PVC, (analog voltage / current, incr. Open Collector) | Connector M12x1, 4-pin / 5-pin / 8-pin with cable L=0.15 m | 201: Cable 4-pol., 0,5 m shielded | 202: Cable 4-pol., 1 m shielded | 206: Cable 4-pol., 3 m shielded | 210: Cable 4-pol., 5 m shielded | 220: Cable 4-pol., 10 m shielded | 501: M12 connector 4-pin, with cable, L = 0.15 m, shielded
Specifications Emc Compatibility
CISPR25 Radiated emission GW 5 | EN 55011/EN 55022/A1 Radiated disturbances class B | EN61000-4-2 Immunity to static discharge (ESD) 4 kV, 8 kV, 15 kV | ISO 11452-2 Radiated EM RF fields, 100 V/m | ISO 11452-4 BCI (Bulk current injection) 100 mA | ISO 11452-5 Radiated EM RF fields, 300 V/m | ISO 7637-1/2/3 | ISO 7637-2 Pulse 1a, 2a, 3a, 3b, 4, 5 | ISO 7637-3 Transient transmission (on/off) SG 3 | ISO TR10605 Packaging and Handling + Component test 8 kV/15 kV | SAE J1113-13 Packaging and handling 4-20 kV | SAE J1113-2 Conducted immunity level 2 | SAE J1113-22 Radiated magnetic field 80 µT | SAE J1113-26 AC power line electric field 15 kV
Specifications Fastening Torque Of Mounting Screws
250 N·cm
Specifications Features
2-part, mechanically decoupled | Customized versions | Electrical range up to 360º | High protection class, IP67, IP6K9K | Interfaces: Voltage, current, SSI, incremental, CANopen, SPI | Optimized for use in industrial and mobile applications | Resolution up to 14 Bit | Single and multi-channel versions | Temperature range -40 ºC to +125 ºC | Touchless hall technology | Wear-free
Specifications Housing Material
High grade | Temperature resistant plastic
Specifications Hysteresis
< 0.1 º
Specifications Independent Linearity Fs
= 0.5 %
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Life
Mechanically Unlimited
Specifications Maximum Operational Speed
Mechanically Unlimited
Specifications Mean Time To Failure Mttf
111 Years | 288 Years | 290 Years | 98 Years
Specifications Measuring Range
0 to 30 º | 06 | 12 | 18 | 24 | 36
Specifications Mechanical Version
4801: Elongated hole mounting for easy adjustment | 4802: Round hole mounting
Specifications Mounting
with 2 lens flange head screws M4 (enclosed in delivery)
Specifications Number Of Channels
6: Single output 1 x supply voltage Ub / 1 x output | 7: partly redundant 1 x supply voltage Ub / 2 x output (only at supply voltage Ub = 5 V)

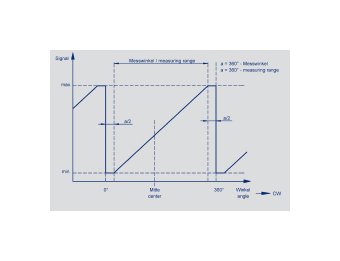

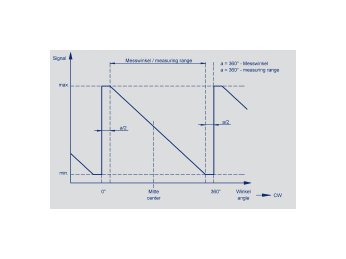

Specifications Output Characteristics
Crossed output channel 1 rising cw (partly redundant) | Rising ccw | Rising cw
Specifications Output Signal Supply Voltage Ub 24 V
0.1 to 10 V (only one-channel) | 4 to 20 mA (only one-channel)
Specifications Output Signal Supply Voltage Ub 5 V
0.25 to 4.75 V ratiometric to supply voltage Ub | 0.5 to 4.5 V ratiometric to supply voltage Ub
Specifications Protection Class Din En 60529
IP67 / IP6K9K (not with M12 connector)
Specifications Repeatability
0.1 º
Specifications Resolution
12 bits
Specifications Reverse Voltage
Yes
Specifications Shock Iec 60068 2 27
50 g | 6 ms
Specifications Short Circuit Protection
Yes (vs. GND and supply voltage)
Specifications Supply Voltage
Supply voltage Ub = 24 V (18 to 30 V) | Supply voltage Ub = 5 V (4.5 to 5.5 V)
Specifications Temperature Error At Measuring Range 180 Up To 36
0.41 % | 0.66 %
Specifications Temperature Error At Measuring Range 30 Up To 170
0.825 % | 1.24 %
Specifications Temperature Range
-40 to 105 ºC | -40 to 125 ºC
Specifications Current Consumption Without Load
15 mA
Specifications Update Rate
5 kHz
Specifications Vibration Iec 60068 2 6
5 to 2000 Hz | Amax = 0.75 | amax = 20
