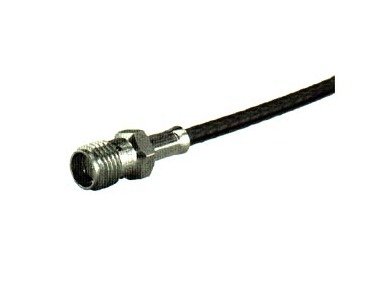

RG 316 SMA Straight Cable Plugs (Female)
RG 316 SMA Straight Cable Plugs (Female)
SKU:SMA-a21897
Upgrade to RG 316 SMA Straight Cable Plugs for reliable, high-frequency connections up to 18 GHz. Designed for durability and peak performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
RG 316 SMA Straight Cable Plugs (Female)
$29.99
Quantity: 1
Claim Your Seller Account
RG 316 SMA Straight Cable Plugs (Female)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your connectivity with our RG 316 SMA Straight Cable Plugs. Designed to meet the most demanding requirements, these plugs feature a frequency range up to 18 GHz, RF-Leakage exceeding 60 dB, and a working voltage of 190 V rms. Crafted with precision from high-quality materials including beryllium copper and gold plating, ensuring durability and optimal performance. Ideal for applications where reliability and signal integrity are critical.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U4
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
