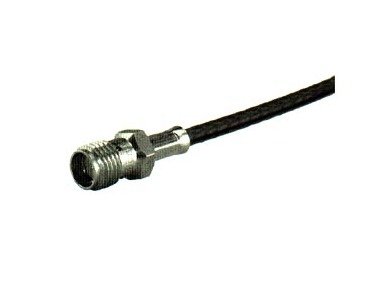

RG 316 SMA Straight Cable Plugs (Female)
RG 316 SMA Straight Cable Plugs (Female)
SKU:SMA-a57a66
Enhance connectivity with our RG 316 SMA Straight Cable Plugs for seamless performance up to 18GHz. Superior quality and reliability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
RG 316 SMA Straight Cable Plugs (Female)
$24.99
Quantity: 1
Claim Your Seller Account
RG 316 SMA Straight Cable Plugs (Female)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our RG 316 SMA Straight Cable Plugs, designed for precision and reliability. With a frequency range of DC - 18GHz and exceptional RF-Leakage (>60dB), these plugs ensure top-notch performance in diverse environments. Built with durable materials and compliant with industry standards, they offer superior contact resistance and a wide temperature range of -85°F to 329°F. Suitable for both consumer and institutional usage, these cable plugs deliver efficiency and longevity to meet your communication needs.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U2
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
female
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
