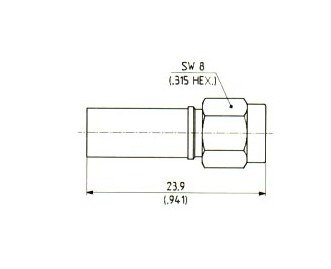

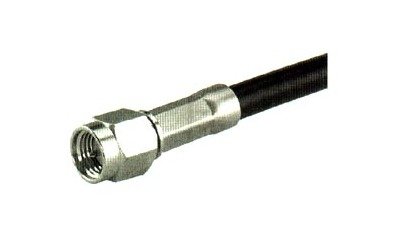

RG 58, 400 Straight Cable Plugs (Male)
RG 58, 400 Straight Cable Plugs (Male)
SKU:SMA-96baed
High-performance RG 58, 400 Straight Cable Plugs (Male) for up to 18 GHz applications. Impedance: 50 ohms. Designed for precision connectivity.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
RG 58, 400 Straight Cable Plugs (Male)
$34.99
Quantity: 1
Claim Your Seller Account
RG 58, 400 Straight Cable Plugs (Male)
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RG 58, 400 Straight Cable Plugs (Male) are precision-engineered SMA subminiature connectors by HUBER+SUHNER, designed for seamless connectivity in high-frequency applications up to 18 GHz. Featuring a solid beryllium copper construction, these straight cable plugs ensure exceptional performance in diverse environments, offering an impedance of 50 ohms and RF-Leakage greater than 60dB. With a wide frequency range from DC to 18 GHz and a temperature tolerance from -85 to 329 degrees F, these cable plugs guarantee reliable signal transmission and durability. Perfect for demanding institutional and government projects requiring stringent standards compliance.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U9, U11
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
stainless steel
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
