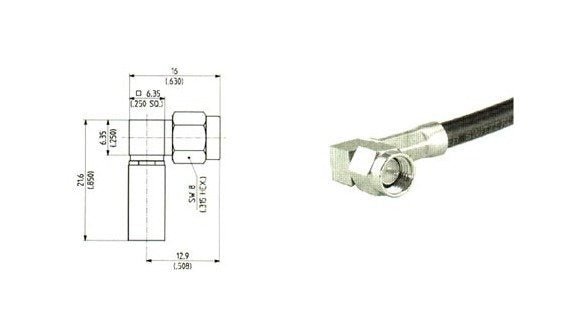

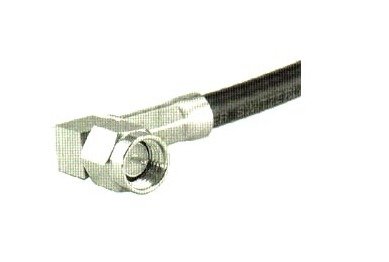

RG 58 SMA Right Angle Cable Plug (Male)
RG 58 SMA Right Angle Cable Plug (Male)
SKU:SMA-039874
High-performance RG 58 SMA Right Angle Cable Plug (Male) for frequencies up to 18 GHz, offering superior durability and reliability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
RG 58 SMA Right Angle Cable Plug (Male)
$24.99
Quantity: 1
Claim Your Seller Account
RG 58 SMA Right Angle Cable Plug (Male)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RG 58 SMA Right Angle Cable Plug (Male) is a high-performance connector suitable for a wide frequency range of DC to 18 GHz, making it ideal for demanding applications. Crafted from durable beryllium copper, the plug ensures reliable connectivity with low RF-Leakage and superior impedance control. Its hardened pin and socket contact materials, combined with a PTFE insulator, guarantee stable performance in extreme temperatures from -85 to 329 degrees F. This connector meets stringent FCC standards for corona extinction voltage, contact resistance, and dielectric withstanding voltage, making it a top choice for military, aerospace, and telecommunications industries.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U7
Specifications Cable Type
flexible
Specifications Configuration
right angle
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
