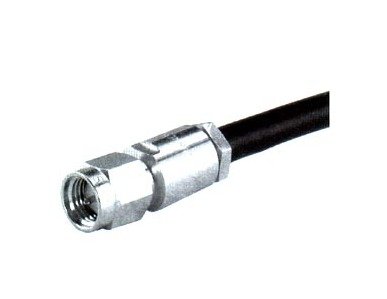

RG Straight Cable Plugs (Male) - SMA Connector
RG Straight Cable Plugs (Male) - SMA Connector
SKU:SMA-4e6797
Enhance your connectivity with our RG Straight Cable Plugs - Male SMA Connector, designed for high-frequency precision.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
RG Straight Cable Plugs (Male) - SMA Connector
$29.99
Quantity: 1
Claim Your Seller Account
RG Straight Cable Plugs (Male) - SMA Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior connectivity with our RG Straight Cable Plugs. Ideal for high-frequency applications, these male plugs feature hardened Beryllium copper construction and PTFE/PFA insulator material, ensuring reliable performance in extreme conditions. With impedance of 50 ohms, RF-Leakage >60dB, and a temperature range of -85 to 329°F, these plugs meet stringent industry standards for durability and precision.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U10
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
single
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
gold
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
