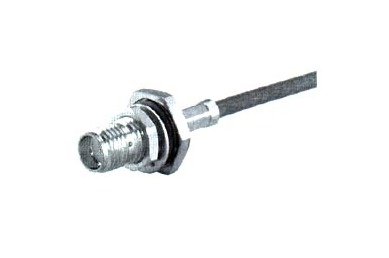

RG316 Straight Bulkhead Cable Plugs (Female)

Name: RG316 Straight Bulkhead Cable Plugs (Female)
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-2820c5
Price: 39.99 USD
Availability: OutOfStock

SKU:SMA-2820c5

Experience seamless connectivity with our RG316 Straight Bulkhead Cable Plugs (Female). Ideal for SMA subminiature applications up to 18 GHz.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The RG316 Straight Bulkhead Cable Plugs (Female) are precision-engineered for seamless connectivity in SMA subminiature applications up to 18 GHz. Featuring a beryllium copper construction with hardened pin and socket contacts, these plugs ensure superior performance with a contact resistance of less than 65 ohms. The PTFE or PFA insulator material provides optimal dielectric performance, while the SUCOPLATE plating enhances durability. Designed for reliability in extreme conditions, these plugs offer a temperature range of -85 to 329 degrees F, making them ideal for mission-critical environments.

Product Specifications

Specifications Body Material

Beryllium copper, hardened

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Cable Group

Specifications Cable Type

flexible

Specifications Configuration

straight bulkhead

Specifications Connection

female

Specifications Connector Series

<2.5

Specifications Contact Captivation Lbs

SMA

Specifications Contact Resistance Centre Contact Ohms

<65/<85

Specifications Contact Resistance Outer Contact Ohms

Specifications Corona Extinction Voltage V Rms

<250/<335

Specifications Crimp Ferrule Material

copper, brass

Specifications Dielectic Withstanding Voltage V Rms

750/1000

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Insulator Material

PTFE or PFA

Specifications Mounting Hole

ML 20

Specifications Packaging

bulk 100 pcs.

Specifications Pin Contact Material

Beryllium copper, hardened

Specifications Plating Body

SUCOPLATE

Specifications Rf Leakage Db

>60

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-85 to 329

Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol

190/250

RG316 Straight Bulkhead Cable Plugs (Female)
