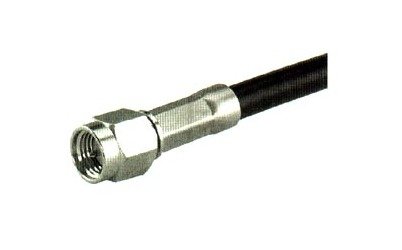

RG58 & RG400 Straight Cable Plugs (Male)
RG58 & RG400 Straight Cable Plugs (Male)
SKU:SMA-16d555
High-quality RG58 & RG400 Straight Cable Plugs (Male) for reliable signal transmission in diverse applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
RG58 & RG400 Straight Cable Plugs (Male)
$159.99
Quantity: 1
Claim Your Seller Account
RG58 & RG400 Straight Cable Plugs (Male)
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RG58 & RG400 Straight Cable Plugs (Male) from HUBER+SUHNER's SMA Subminiature Connector line are precision-engineered for superior performance. With an impedance of 50 ohms and a wide frequency range of DC to 18GHz, these connectors ensure reliable signal transmission. Crafted from high-quality beryllium copper, the connectors offer exceptional durability and a temperature range from -85 to 329 degrees Fahrenheit. Suitable for U9 and U11 cable groups, these plugs come in a bulk packaging of 100 pieces, making them ideal for large-scale deployments in diverse settings.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U9, U11
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
