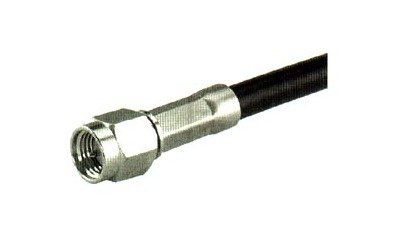

RG58 SMA Straight Male Cable Plugs
RG58 SMA Straight Male Cable Plugs
SKU:SMA-3cb1ca
High-performance RG58 SMA Straight Male Cable Plugs for reliable high-frequency signal transmission up to 18 GHz.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
RG58 SMA Straight Male Cable Plugs
$29.99
Quantity: 1
Claim Your Seller Account
RG58 SMA Straight Male Cable Plugs
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RG58 SMA Straight Male Cable Plugs are precision-engineered for high-frequency applications up to 18 GHz. Compliant with stringent industry standards, these plugs feature beryllium copper construction, PTFE or PFA insulator material, and a durable SUCOPLATE body plating for reliable performance and longevity. With low contact resistance, superior RF leakage protection, and a wide temperature range, these connectors ensure secure and efficient signal transmission in demanding environments.
Product Specifications
Specifications Body Material
Beryllium copper, hardened
Specifications Cable Dielectic Dia Inches
.066/.117
Specifications Cable Group
U7
Specifications Cable Type
flexible
Specifications Configuration
straight
Specifications Connection
male
Specifications Connector Series
<2.5
Specifications Contact Captivation Lbs
SMA
Specifications Contact Resistance Centre Contact Ohms
<65/<85
Specifications Contact Resistance Outer Contact Ohms
<3
Specifications Corona Extinction Voltage V Rms
<250/<335
Specifications Crimp Ferrule Material
copper, brass
Specifications Dielectic Withstanding Voltage V Rms
750/1000
Specifications Frequency Range Ghz
DC - 18
Specifications Impedence Ohms
50
Specifications Insulator Material
PTFE or PFA
Specifications Packaging
bulk 100 pcs.
Specifications Pin Contact Material
Beryllium copper, hardened
Specifications Plating Body
SUCOPLATE
Specifications Rf Leakage Db
>60
Specifications Socket Contact Material
Beryllium copper, hardened
Specifications Temperature Range Degrees F
-85 to 329
Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol
190/250
