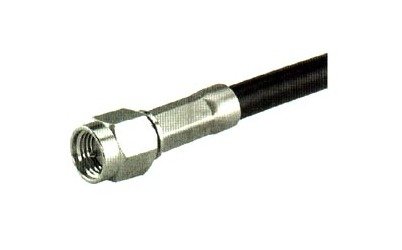

RG58 Straight Cable Plugs (Male) - 18GHz SMA Subminiature Connector

Name: RG58 Straight Cable Plugs (Male) - 18GHz SMA Subminiature Connector
Brand: C. W. Swift & Associates, Inc.
SKU: SMA-b6f2e9
Price: 9.99 USD
Availability: OutOfStock

SKU:SMA-b6f2e9

Enhance RF connections with RG58 Straight Cable Plugs - Male connectors for SMA Subminiature Connectors up to 18GHz. Reliable, durable, and compliant.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your RF connections with our RG58 Straight Cable Plugs. Designed to meet the rigorous demands of RF applications, these male connectors feature a frequency range up to 18GHz, impedance of 50 ohms, and exceptional RF-leakage performance. With beryllium copper construction, PTFE or PFA insulator material, and stainless steel plating, these connectors ensure reliable and durable connections. Perfect for SMA Cable Connectors up to 18GHz, compliant with institutional standards.

Product Specifications

Specifications Body Material

Beryllium copper, hardened

Specifications Cable Dielectic Dia Inches

.066/.117

Specifications Cable Group

Specifications Cable Type

flexible

Specifications Configuration

straight

Specifications Connection

male

Specifications Connector Series

<2.5

Specifications Contact Captivation Lbs

SMA

Specifications Contact Resistance Centre Contact Ohms

<65/<85

Specifications Contact Resistance Outer Contact Ohms

Specifications Corona Extinction Voltage V Rms

<250/<335

Specifications Crimp Ferrule Material

copper, brass

Specifications Dielectic Withstanding Voltage V Rms

750/1000

Specifications Frequency Range Ghz

DC - 18

Specifications Impedence Ohms

Specifications Insulator Material

PTFE or PFA

Specifications Packaging

single

Specifications Pin Contact Material

Beryllium copper, hardened

Specifications Plating Body

stainless steel

Specifications Rf Leakage Db

>60

Specifications Socket Contact Material

Beryllium copper, hardened

Specifications Temperature Range Degrees F

-85 to 329

Specifications Working Voltage 70000 Ft V Rmsrf Withstanding Vol

190/250
