Rightway Air Winch - Model RA
Rightway Air Winch - Model RA
SKU:RIG-df89ec
Heavy-duty Rightway Air Winch for professional lifting and pulling tasks, featuring self-locking worm gear reduction and precision sealed roller bearings.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Rightway Air Winch - Model RA
$1,899.99
Quantity: 1
Claim Your Seller Account
Rightway Air Winch - Model RA
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

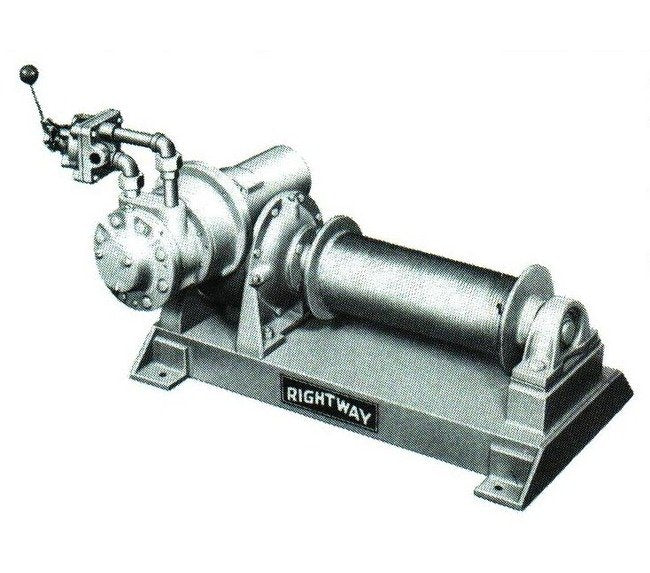

The Rightway Model RA Air Winch is a heavy-duty solution designed for professional use in various applications. With a running capacity of 500 lbs and a line speed of 100 FPM, this winch is built for reliability and efficiency. Featuring self-locking worm gear reduction with oil bath lubrication and precision sealed roller bearings, it ensures smooth operation and durability. The winch can be mounted in any position, making it versatile for different setups. Ideal for lifting and pulling tasks, this winch comes with optional equipment such as a Control valve, Pendant Remote Control, Filter-Oiler, Exhaust Muffler, and Air Pressure Regulator. Whether for industrial, commercial, or institutional use, the Model RA Air Winch is a dependable choice that meets rigorous quality and safety standards.
Product Specifications
Specifications Air Requirement
75 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
330 ft.
Specifications Full Drum
550 ft.
Specifications Line Speed
100 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
160 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
500
Specifications Winch Height
21 inches
Specifications Winch Length
24 inches
Specifications Winch Width
21 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/8 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
