Rightway Electric Winch Bend Sheaves with Mounting Frame
Rightway Electric Winch Bend Sheaves with Mounting Frame
SKU:RIG-80d546
Enhance your winching capabilities with the durable Rightway Electric Winch Bend Sheaves for safe and efficient lifting and pulling operations.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Rightway Electric Winch Bend Sheaves with Mounting Frame
$149.99
Quantity: 1
Claim Your Seller Account
Rightway Electric Winch Bend Sheaves with Mounting Frame
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

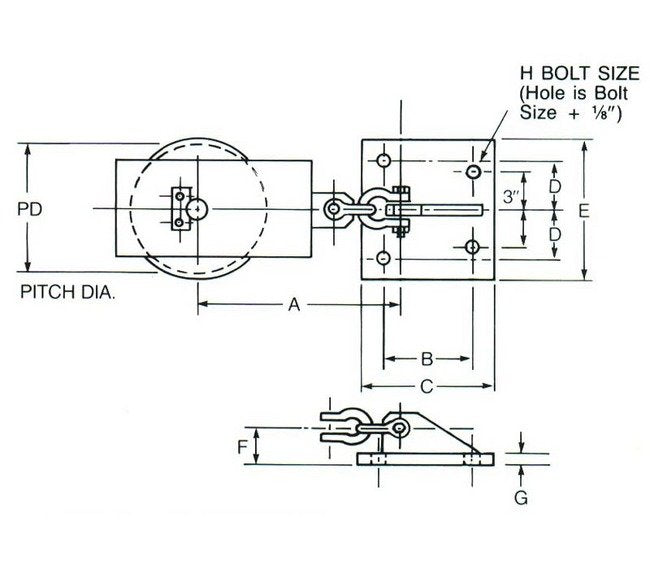

The Rightway Electric Winch Bend Sheaves with Mounting Frame is a heavy-duty accessory designed for lifting and pulling operations. With a capacity of 2000 lbs. and a wire rope diameter of 5/16 inches, this bend sheaves model (BS) offers reliable performance. Its dimensions ensure a secure fit with 5 inches pitch diameter, 12 1/2 inches in Dimension A, 10 inches in Dimension B, and adjustable mounting options for horizontal base, inverted ceiling, or vertical orientation. Equipped with essential controls like a lever drum mounted at the winch and a magnetic remote pushbutton, this product is built for efficient and safe operation in various applications.
Product Specifications
Specifications Capacity
2000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Dimension A
12 1/2 inches
Specifications Dimension B
10 inches
Specifications Dimension C
12 1/2 inches
Specifications Dimension D
3 1/2 inches
Specifications Dimension E
9 1/2 inches
Specifications Dimension F
3 1/2 inches
Specifications Dimension G
5/8 inches
Specifications Dimension H
3/4 inches
Specifications Model
BS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
5 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
5/16 inches
