Rightway Electric Winch Model R
Rightway Electric Winch Model R
SKU:RIG-c65761
Get the reliable Rightway Electric Winch Model R for heavy-duty lifting and pulling applications. Equipped with 3 HP motor, precision sealed roller bearings, and safety features.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Rightway Electric Winch Model R
$1,899.99
Quantity: 1
Claim Your Seller Account
Rightway Electric Winch Model R
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

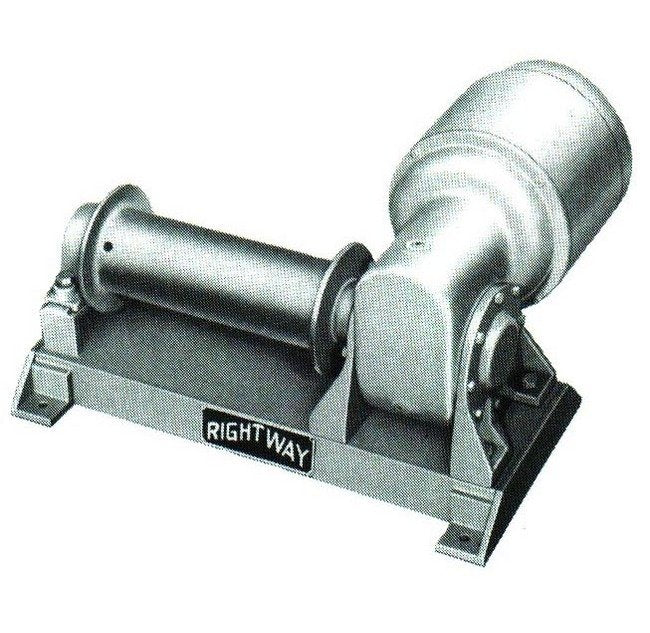

The Rightway Electric Winch Model R is a versatile and durable solution suitable for both consumer and institutional buyers. With a running capacity of 2000 lbs and a line speed of 40 FPM, this winch is equipped with a 3 HP motor and precision sealed roller bearings for continuous heavy-duty operation. The winch features a self-locking worm gear reduction system with oilbath lubrication, ensuring all-weather use and a minimum 5 to 1 structural safety factor. Additionally, it includes optional equipment like electric motor brake, control options, and limit switches, catering to various applications such as lifting and pulling. Ideal for diverse mounting options, this winch meets stringent industry standards for reliability and performance.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
165 ft.
Specifications Electrical Current
220/440 V-3-60
Specifications Full Drum
275 ft.
Specifications Line Speed
40 FPM
Specifications Motor
3 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
240 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
2000
Specifications Winch Height
18 inches
Specifications Winch Length
25 inches
Specifications Winch Width
29 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floor Self-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
