Rightway HC Horizontal Capstans
SKU:RIG-c7a559
Reliable Rightway HC Horizontal Capstans for all-weather use, featuring high torque and heavy-duty construction for long-lasting performance.
Regular price
$7,499.00
Regular price
Sale price
$7,499.00
Unit price
per
Initiate Order
Rightway HC Horizontal Capstans
$7,499.00
Quantity: 1
Claim Your Seller Account
Rightway HC Horizontal Capstans
$7,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

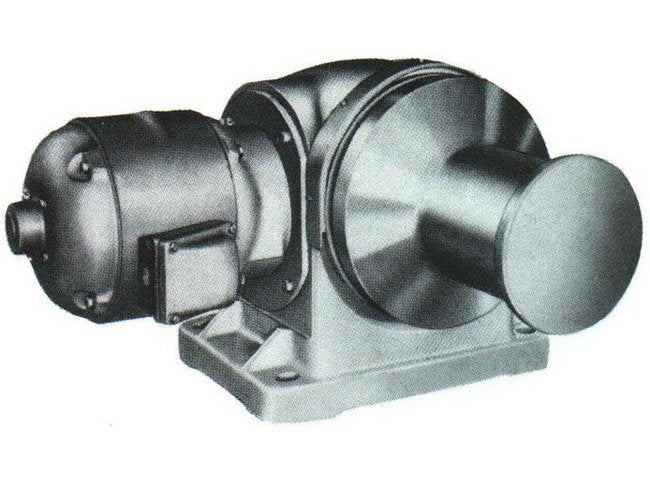

The Rightway HC Horizontal Capstans are built for superior performance in all weather conditions. With fully enclosed power train oil bath lubrication and an all-steel construction featuring a minimum 5 to 1 structural safety factor, these capstans are designed for reliability and durability. The totally enclosed motor provides high starting torque, while the heavy-duty solid construction ensures a long service life. With a pull capacity of 12,000 lbs (starting), 6,000 lbs (running), and a line speed of 15 FPM, these capstans deliver exceptional performance in various applications.
Product Specifications

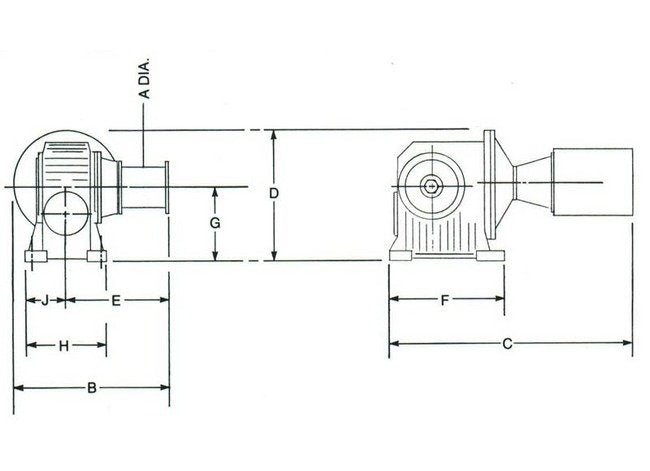

Specifications Dimension A
8 inches
Specifications Dimension B
23 inches
Specifications Dimension C
42 inches
Specifications Dimension D
19 1/2 inches
Specifications Dimension E
16 inches
Specifications Dimension F
17 inches
Specifications Dimension G
12 inches
Specifications Dimension H
12 inches
Specifications Dimension J
6 inches
Specifications Line Speed
15 FPM
Specifications Net Weight
675 lbs.
Specifications Pull Capacity Running
6000
Specifications Pull Capacity Starting
12000
Standard Features 0
All weather use is ideal for rightway capstans Fully enclosed power train oilbath lubrication All steel construction minimum 5 to 1 structural safety factor Totally enclosed motor high starting torque Heavy duty design solid construction for long life
