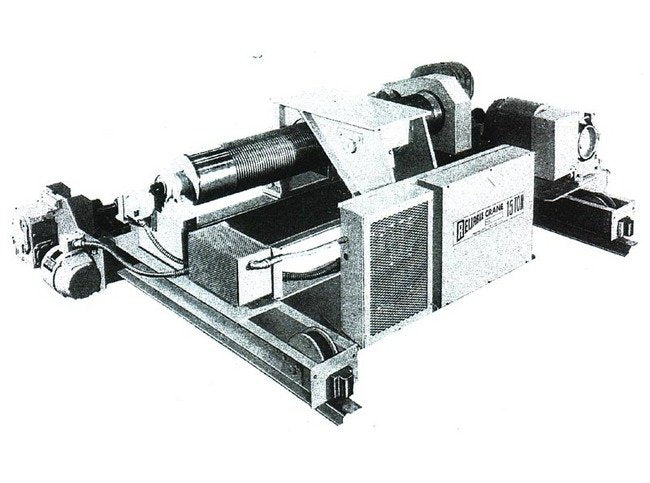

Meet your heavy lifting needs with the Model 'RW' Heavy Duty Built-Up Hoist Trolleys by Rightway Hoists. This trolley features a robust one-piece steel weldment frame, precision 4140 steel wheels, and a fabricated steel drum with deep grooves for smooth operation. With a 15-ton capacity, 30 ft lift, and various safety features like upper and lower limit switches, this hoist trolley ensures secure and efficient vertical lifting. Additionally, it comes with NEMA rated contactors, mechanical and regenerative braking, and a 115 Volt fused control circuit for reliable performance. Ideal for industrial settings requiring high-performance lifting equipment.
Product Specifications
Optional Features 0
Rubber or Spring Bumpers Longer Hook Lifts Pushbutton Station Eddy Current Variable Speed Hoist Control Three and Four Fixed Hoist Speeds with Constant Torque Solid State Soft Start Trolley Control Two (2) Speed or Variable Speed Trolley Centre NEMA 3R, 4 or 12 Control Enclosures DC Motors and Controls Explosion Proof Motors and Controls Spark Resistant Construction Power Circuit Upper Limit Switch Special Girder Gauge Drum Mounted Mechanical Load and Overspeed Safety Brake
Specifications Capacity
15 Tons

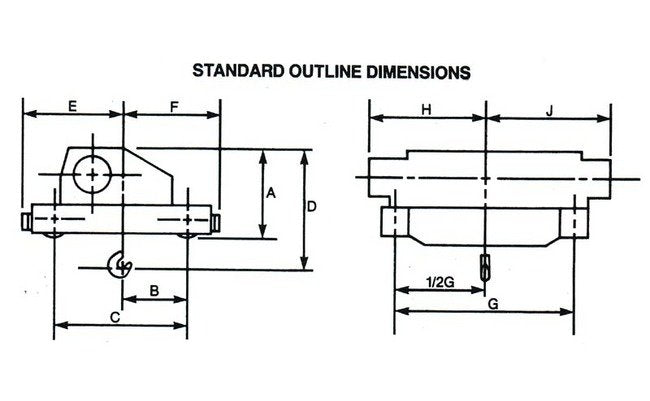

Specifications Dimension A
29 3/4 inches
Specifications Dimension B
26 inches
Specifications Dimension C
5'-0"
Specifications Dimension D
51 inches
Specifications Dimension E
43 inches
Specifications Dimension F
37 inches
Specifications Dimension G
7'-0" inches
Specifications Dimension H
5'-1"
Specifications Dimension J
5'-3"
Specifications Hoist Single Speed
15 HP
Specifications Hoist Speed Single Speed
12 FPM
Specifications Hoist Speed Two Speed
8/24 FPM
Specifications Hoist Two Speed
5/15 HP
Specifications Lift
30 ft.
Specifications Reeving
4PD-7/16"
Specifications Trolley Gage
7'-0"
Specifications Trolley Motor
1 1/2 HP
Specifications Trolley Speed
55
Specifications Weight
5100 lbs.
Specifications Wheel Diameter
8 inches
Standard Features Standard Features
One Piece Heavy Steel Weldment Trolley Frame Precision 4140 Steel Trolley Wheels Double Reeved for True Vertical Lift Fabricated Steel Drum with Deep Machined Grooves 10,000 Hour L-10 Bearing Life High Carbon Alloy Steel Sheaves 150% Disc Type Hoist Motor Brake Single-Two-Three and Four Speed Models Upper and Lower Geared Limit Switch Weight Operated Upper Safety Limit Switch All Steel Enclosed Lower Block All Sheaves Above Trolley Deck NEMA Rated Contactors NEMA Type 1 Control Enclosure 115 Volt Fused Control Circuit M.O.P. (Motor Overcurrent Protection) M.R.O.P. (Motor Running Overcurrent Protection) TENV, 30 Minute Rated Motors Legended Terminal Strips Mechanical and Regenerative Braking Ballast Resistors for Trolley Drive Spring Type Safety Latch on Hook Rail Sweeps Factory Reeved and Tested
