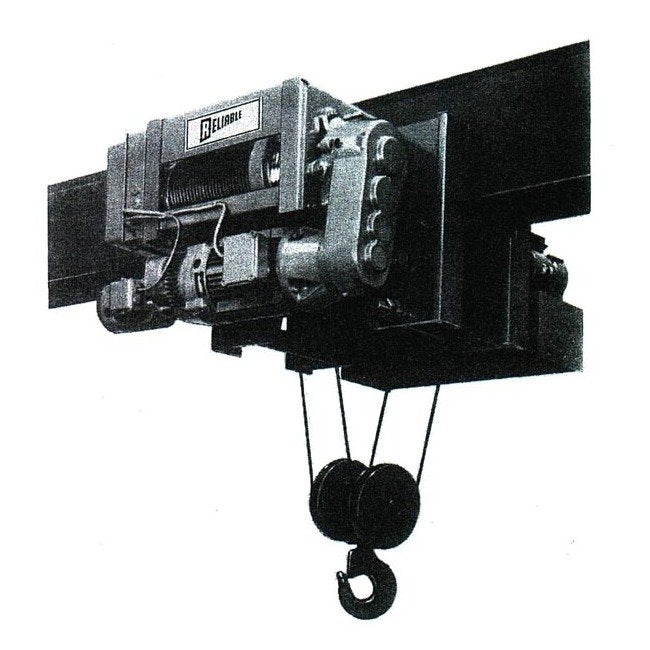

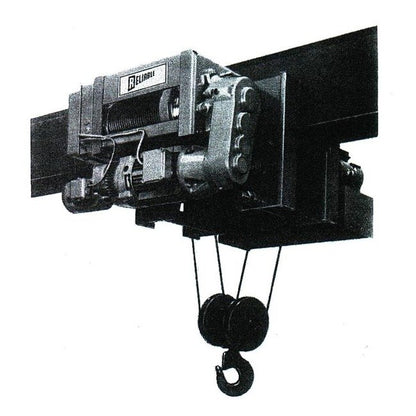

Rightway Hoists Model RPM Low Headroom Monorail Hoists
Rightway Hoists Model RPM Low Headroom Monorail Hoists
SKU:RIG-930ebe
Heavy-duty Model RPM Low Headroom Monorail Hoists for institutional and industrial use. 3-ton capacity, 20ft lift, with advanced safety features.
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
Rightway Hoists Model RPM Low Headroom Monorail Hoists
$7,899.99
Quantity: 1
Claim Your Seller Account
Rightway Hoists Model RPM Low Headroom Monorail Hoists
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Hoists Model RPM Low Headroom Monorail Hoists are designed to meet the rigorous demands of industrial and institutional applications. With a maximum capacity of 3 tons and a lift of 20 feet, these hoists are equipped with 250% Torque Hoist Motor Brake, NEMA Rated Contactors, and a TENV Class 'F' Insulated Motors for reliable and safe operation. The low headroom construction, absence of overhung gears or pinions, and helical gearing ensure quiet and efficient performance. These hoists also feature dual wound motors for versatility and M.R.O.P. (Motor Running Overcurrent Protection) for added safety.
Product Specifications
Specifications Cable Diameter
1/4 inches
Specifications Capacity
3 Tons

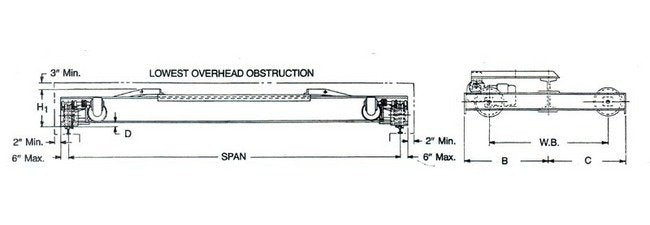

Specifications Head Room
22 inches
Specifications Hoists
4 HP
Specifications Hoist Speed
16
Specifications Lift
20'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
1/3 HP
Specifications Trolley Speed
60
Specifications Weight
635 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
