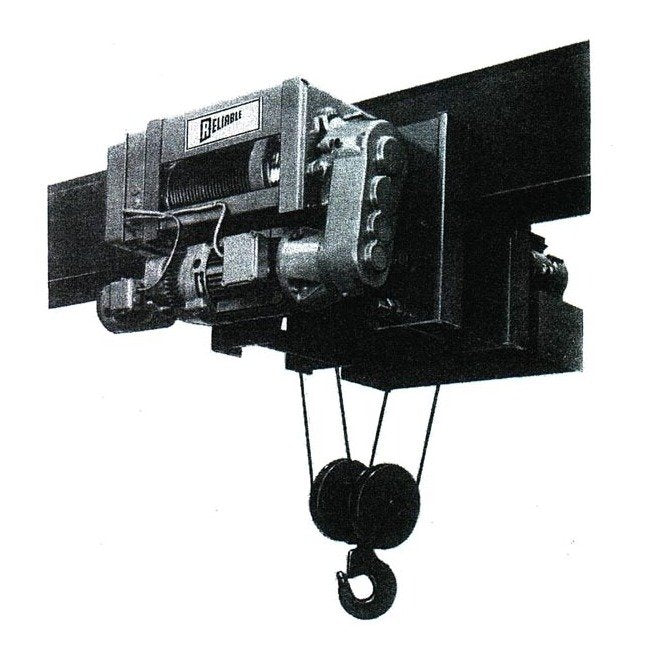

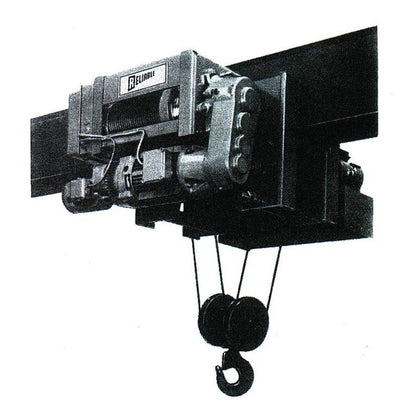

Rightway Hoists Model RPM Low Headroom Monorail Hoists - 10 Ton Capacity
Rightway Hoists Model RPM Low Headroom Monorail Hoists - 10 Ton Capacity
SKU:RIG-f1dcdd
Experience reliable and efficient heavy-duty lifting with the Rightway Hoists Model RPM Low Headroom Monorail Hoists - 10 Ton Capacity.
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
Rightway Hoists Model RPM Low Headroom Monorail Hoists - 10 Ton Capacity
$5,699.99
Quantity: 1
Claim Your Seller Account
Rightway Hoists Model RPM Low Headroom Monorail Hoists - 10 Ton Capacity
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Hoists Model RPM Low Headroom Monorail Hoists are engineered with precision to meet the demands of heavy-duty lifting applications. With a 10-ton capacity and a lift of 33 feet, these hoists provide exceptional performance and reliability. Featuring advanced safety mechanisms such as upper and lower limit switches, torque hoist motor brake, and NEMA rated contactors, these hoists ensure secure operations. The low headroom construction, helical gearing for quiet operation, and trolley drive on both sides of the beam make them suitable for restricted spaces. Additionally, the inclusion of crucial safety features like motor overcurrent protection and all-steel drum with machined grooves enhances their suitability for industrial environments.
Product Specifications
Specifications Cable Diameter
1/2 inches
Specifications Capacity
10 Tons

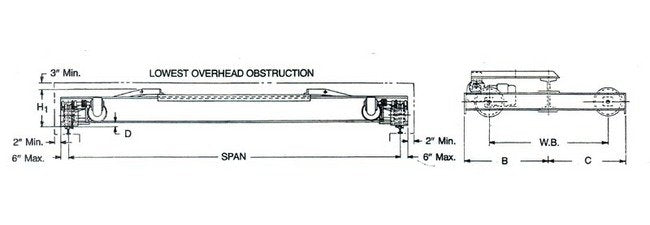

Specifications Head Room
28 inches
Specifications Hoists
12 1/2 HP
Specifications Hoist Speed
16
Specifications Lift
33'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
3/4 HP
Specifications Trolley Speed
60
Specifications Weight
1900 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
