Rightway Hoists Model RPM Low Headroom Monorail Hoists - 3 Tons Capacity
Rightway Hoists Model RPM Low Headroom Monorail Hoists - 3 Tons Capacity
SKU:RIG-a54756
Heavy-duty 3-ton capacity low headroom monorail hoist with quiet operation and advanced safety features.
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
Rightway Hoists Model RPM Low Headroom Monorail Hoists - 3 Tons Capacity
$5,699.99
Quantity: 1
Claim Your Seller Account
Rightway Hoists Model RPM Low Headroom Monorail Hoists - 3 Tons Capacity
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

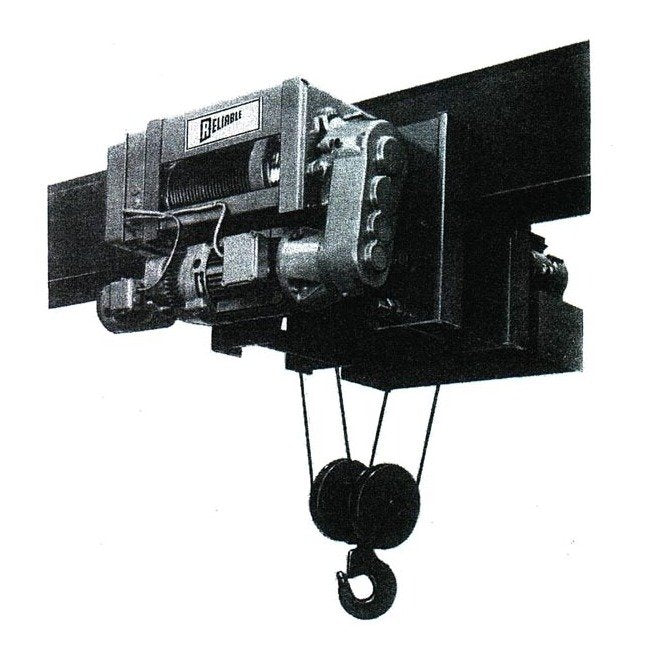

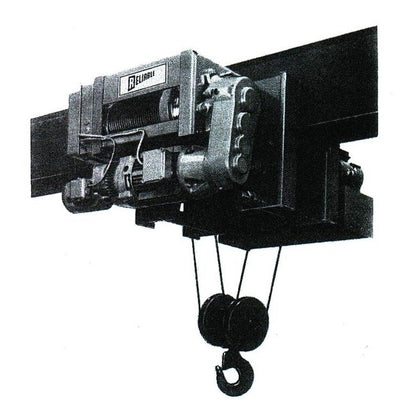

The Rightway Hoists Model RPM is a low headroom monorail hoist designed for heavy-duty applications, offering a 3-ton capacity. It features a 250% torque hoist motor brake, NEMA rated contactors, and helical gearing for quiet operation. With no overhung gears or pinions, this hoist ensures efficient and reliable performance. The construction includes a NEMA 1 control enclosure, dual wound motors, and safety drop lugs on the trolley, meeting stringent industry standards for safety and functionality.
Product Specifications
Specifications Cable Diameter
1/4 inches
Specifications Capacity
3 Tons

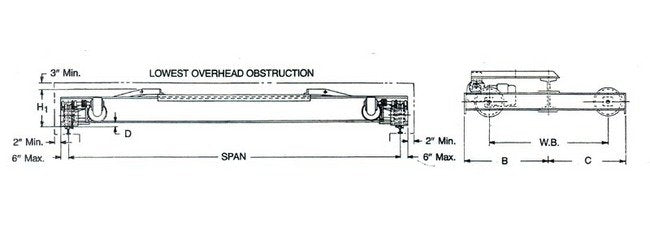

Specifications Head Room
22 inches
Specifications Hoists
4 HP
Specifications Hoist Speed
16
Specifications Lift
30'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
1/3 HP
Specifications Trolley Speed
60
Specifications Weight
700 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
