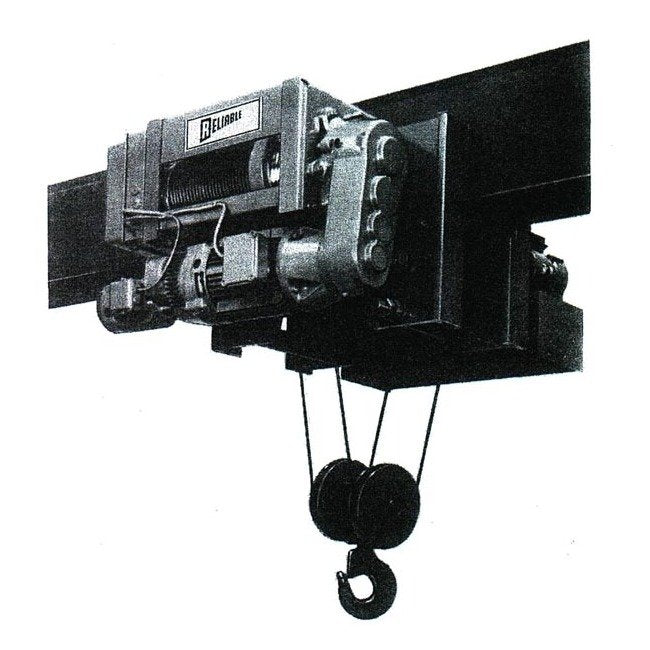

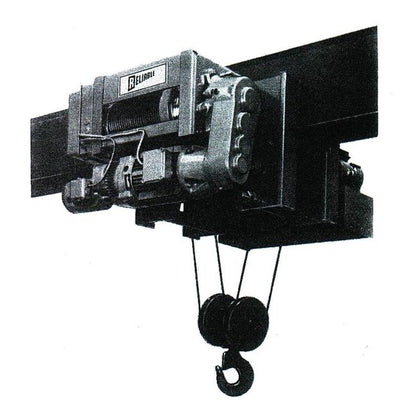

Rightway Hoists Model RPM Low Headroom Monorail Hoists - 5 Ton Capacity
Rightway Hoists Model RPM Low Headroom Monorail Hoists - 5 Ton Capacity
SKU:RIG-47975a
Heavy-duty 5-ton capacity hoists with 250% torque motor brake, NEMA rated contactors, and low headroom design for industrial lifting applications.
Regular price
$7,599.99
Regular price
Sale price
$7,599.99
Unit price
per
Initiate Order
Rightway Hoists Model RPM Low Headroom Monorail Hoists - 5 Ton Capacity
$7,599.99
Quantity: 1
Claim Your Seller Account
Rightway Hoists Model RPM Low Headroom Monorail Hoists - 5 Ton Capacity
$7,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Hoists Model RPM Low Headroom Monorail Hoists are designed for heavy-duty lifting applications with a 5-ton capacity. Featuring a 250% Torque Hoist Motor Brake and NEMA Rated Contactors, these hoists ensure safe and reliable operation. With no overhung gears or pinions, low headroom construction, and helical gearing for quiet operation, these hoists are ideal for industrial settings. The trolley drive on both sides of the beam, 100% trolley brake, and steel drum with machined grooves enhance efficiency and safety. Compliant with NEMA standards and equipped with motor protection features, these hoists offer durability and performance.
Product Specifications
Specifications Cable Diameter
3/8 inches
Specifications Capacity
5 Tons
Specifications Head Room
22 inches
Specifications Hoists
7 1/2 HP
Specifications Hoist Speed
20
Specifications Lift
13'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
3/4 HP
Specifications Trolley Speed
60
Specifications Weight
1125 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
