Rightway Hoists Model RPM Monorail Hoists
Rightway Hoists Model RPM Monorail Hoists
SKU:RIG-61b5d6
High-capacity, low headroom hoists with advanced safety features for reliable performance in institutional settings.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Rightway Hoists Model RPM Monorail Hoists
$8,999.99
Quantity: 1
Claim Your Seller Account
Rightway Hoists Model RPM Monorail Hoists
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

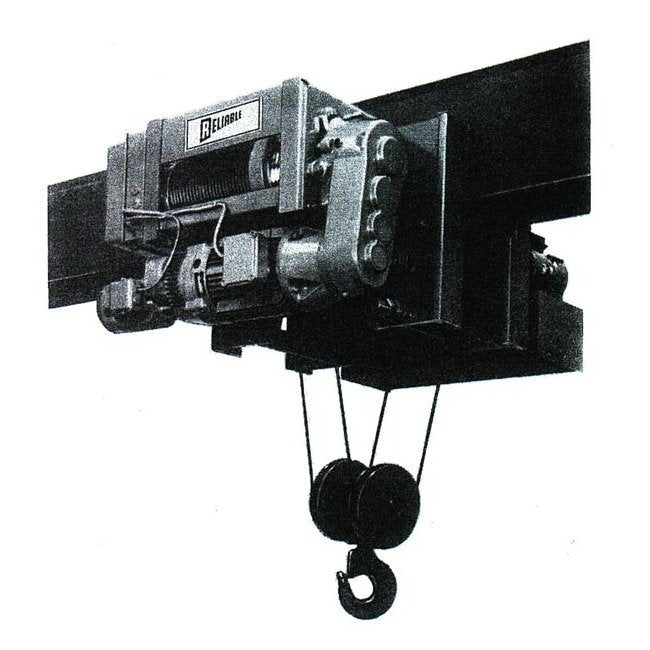

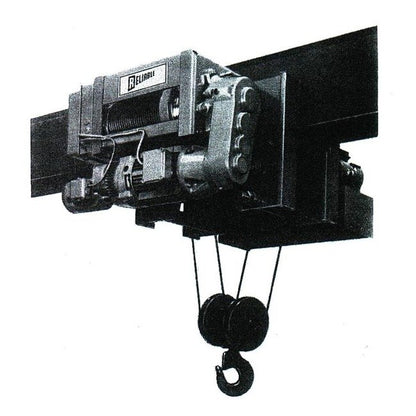

Experience unmatched efficiency with the Rightway Hoists Model RPM Low Headroom Monorail Hoists. With a robust capacity of 7 1/2 tons and a swift hoist speed of 16, these hoists are designed for heavy-duty applications. Featuring advanced safety features such as Upper and Lower Limit Switch, 250% Torque Hoist Motor Brake, and NEMA Rated Contactors, these hoists ensure reliable performance. The low headroom construction, helical gearing for quiet operation, and all-steel drum with machined grooves further enhance the durability and functionality of these hoists. Perfect for institutional and government settings requiring precision and reliability.
Product Specifications
Specifications Cable Diameter
1/2 inches
Specifications Capacity
7 1/2 Tons

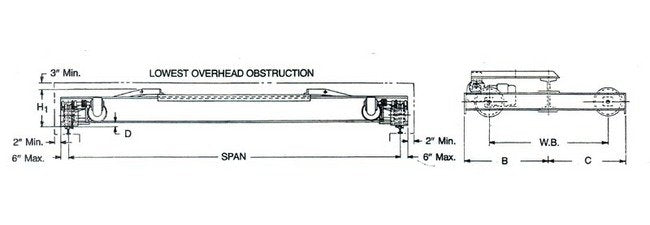

Specifications Head Room
28 inches
Specifications Hoists
12 1/2 HP
Specifications Hoist Speed
16
Specifications Lift
13'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
3/4 HP
Specifications Trolley Speed
60
Specifications Weight
1875 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
