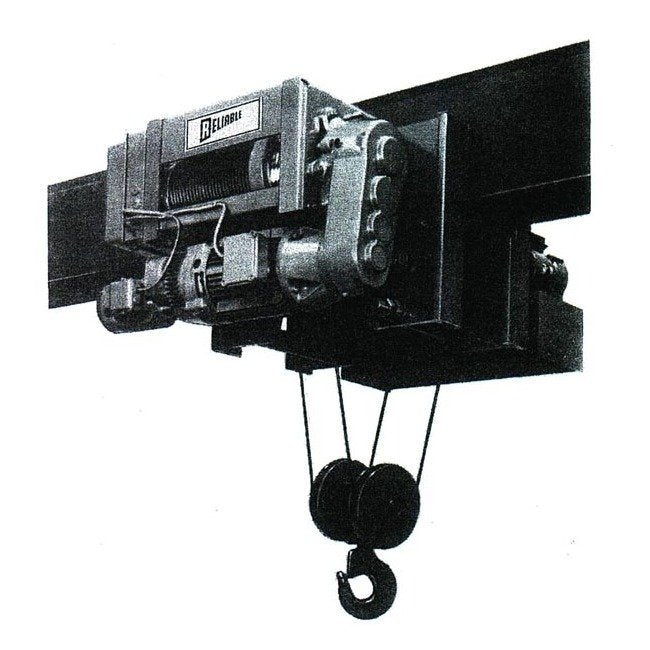

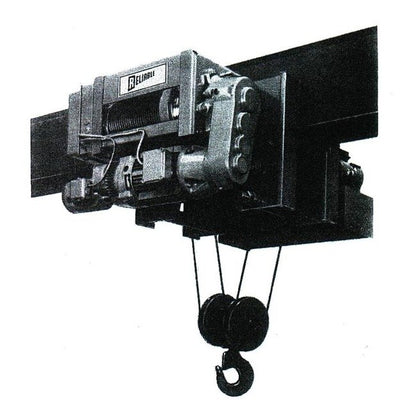

Rightway Hoists RPM 10 Ton Low Headroom Monorail Hoists
Rightway Hoists RPM 10 Ton Low Headroom Monorail Hoists
SKU:RIG-a1070a
Efficient and durable 10-ton low headroom monorail hoists with 250% torque motor brake for safe and quiet heavy lifting operations.
Regular price
$12,499.00
Regular price
Sale price
$12,499.00
Unit price
per
Initiate Order
Rightway Hoists RPM 10 Ton Low Headroom Monorail Hoists
$12,499.00
Quantity: 1
Claim Your Seller Account
Rightway Hoists RPM 10 Ton Low Headroom Monorail Hoists
$12,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Hoists RPM 10 Ton Low Headroom Monorail Hoists are designed for efficiency and durability in heavy-duty lifting applications. With a capacity of 10 tons and a lift of 20 feet, these hoists feature a 12 1/2 HP hoist motor with 250% torque, ensuring reliable performance. The hoists come equipped with upper and lower limit switches, NEMA rated contactors, and 100% trolley brake for enhanced safety. Operating with dual wound motors and helical gearing for quiet operation, these hoists are ideal for low headroom spaces. The steel drum with machined grooves and safety drop lugs on the trolley provide additional security and ease of use.
Product Specifications
Specifications Cable Diameter
1/2 inches
Specifications Capacity
10 Tons
Specifications Head Room
28 inches
Specifications Hoists
12 1/2 HP
Specifications Hoist Speed
16
Specifications Lift
20'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
3/4 HP
Specifications Trolley Speed
60
Specifications Weight
2230 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
