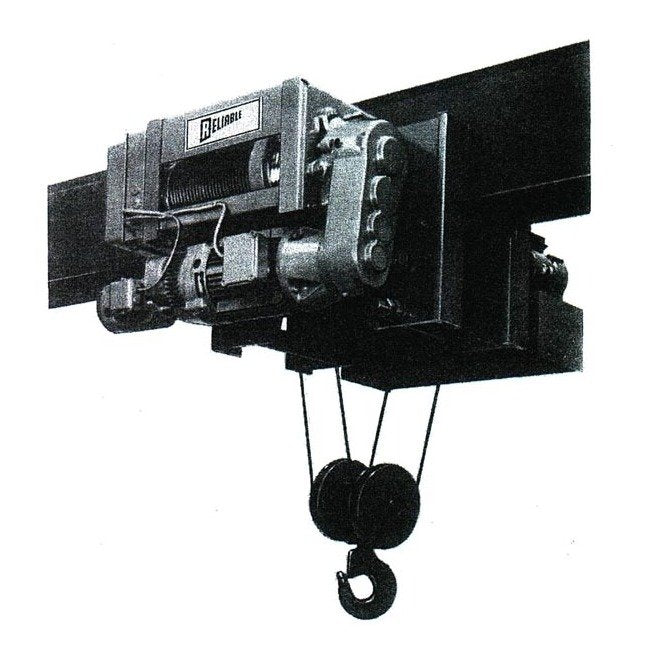

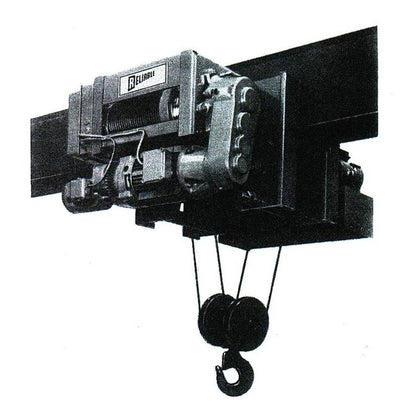

The Rightway Hoists Model 'RPM' Low Headroom Monorail Hoists are designed for heavy-duty lifting applications in confined spaces. With a capacity of 5 tons and a lift of 33 feet, these hoists feature a 7 1/2 HP hoist motor, 250% torque hoist motor brake, and NEMA rated contactors for reliable operation. The hoists also come equipped with safety features such as upper and lower limit switches, all steel drum with machined grooves, and safety drop lugs on the trolley. Ideal for industrial settings requiring quiet operation and high performance, these hoists meet stringent industry standards for durability and functionality.
Product Specifications
Specifications Cable Diameter
3/8 inches
Specifications Capacity
5 Tons
Specifications Head Room
22 inches
Specifications Hoists
7 1/2 HP
Specifications Hoist Speed
20
Specifications Lift
33'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
3/4 HP
Specifications Trolley Speed
60
Specifications Weight
1440 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
