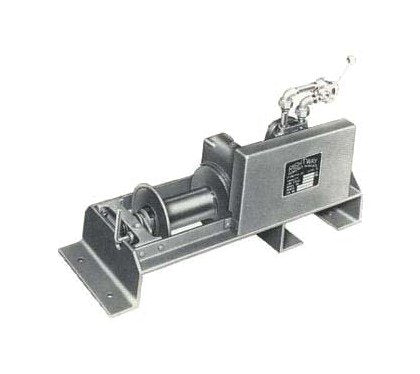

Rightway Model A1 Heavy Duty Air Winches 2000lbs 15 FPM
Rightway Model A1 Heavy Duty Air Winches 2000lbs 15 FPM
SKU:RIG-6a2cb2
Rugged Rightway Model A1 Heavy Duty Air Winches with 2000lbs capacity, 15 FPM Line Speed
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Rightway Model A1 Heavy Duty Air Winches 2000lbs 15 FPM
$2,899.99
Quantity: 1
Claim Your Seller Account
Rightway Model A1 Heavy Duty Air Winches 2000lbs 15 FPM
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model A1 Heavy Duty Air Winches are designed for exceptional performance in demanding environments. Featuring a free spooling drum for easy cable management, self-locking worm gear reduction with oilbath lubrication, and all-weather suitability, these winches set the standard for ruggedness. With a steel fabricated winch base ensuring maximum durability and a 5 to 1 structural safety factor, they excel in both lifting and pulling applications. Compatible with electrical brakes and offering various control options, including lever drum mounted and remote pushbutton, these winches provide reliability and precision in operations.
Product Specifications
Specifications Air Requirement
40 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
120 ft.
Specifications Full Drum
285 ft.
Specifications Line Speed
15 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
220 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
2000
Specifications Winch Height
20 inches
Specifications Winch Length
37 inches
Specifications Winch Width
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Free spooling drum for easy playing out of cable Self-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E1 and A1 winches All steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
