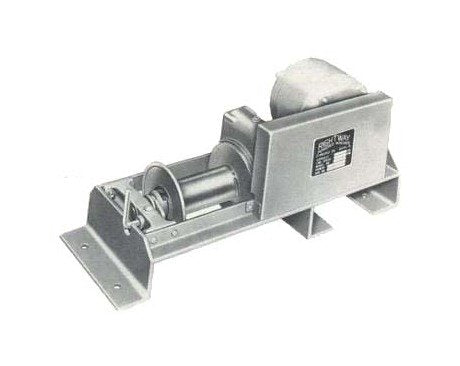

Rightway Model E1 Electric Heavy Duty Winches
Rightway Model E1 Electric Heavy Duty Winches
SKU:RIG-bc6a5a
Reliable and durable electric winches with 1000 lbs capacity, ideal for lifting and pulling applications
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Rightway Model E1 Electric Heavy Duty Winches
$2,899.99
Quantity: 1
Claim Your Seller Account
Rightway Model E1 Electric Heavy Duty Winches
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model E1 Electric Heavy Duty Winches are built for reliability and durability, with a self-locking worm gear reduction system and precision sealed roller bearings for continuous operation. With a running capacity of 1000 lbs and a line speed of 25 FPM, these winches are ideal for lifting and pulling applications. The winches come with optional equipment like electric motor brake, mechanical torque limiter, and cable drum pressure roller for enhanced functionality. Suitable for all weather use, these winches meet stringent safety standards, making them a top choice for heavy-duty operations.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
150 ft.
Specifications Electrical Current
230/460 V-3-60
Specifications Full Drum
410 ft.
Specifications Line Speed
25 FPM
Specifications Motor
1 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
230 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
1000
Specifications Winch Height
14 inches
Specifications Winch Length
37 inches
Specifications Winch Width
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
