Rightway Model E2 Electric Heavy Duty Winch
Rightway Model E2 Electric Heavy Duty Winch
SKU:RIG-c46303
Powerful and durable electric winch for heavy lifting and pulling applications.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Rightway Model E2 Electric Heavy Duty Winch
$2,999.99
Quantity: 1
Claim Your Seller Account
Rightway Model E2 Electric Heavy Duty Winch
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

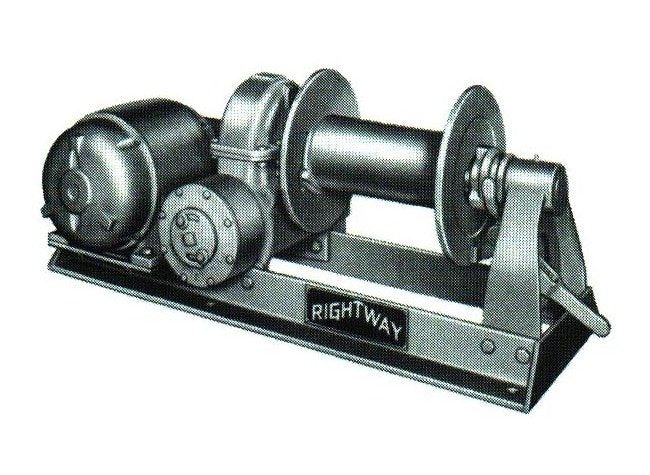

The Rightway Model E2 Electric Heavy Duty Winch is a powerhouse designed for heavy lifting and pulling tasks. With a running capacity of 6000 lbs and a 10 HP motor, this winch is built to handle tough challenges with ease. Featuring a self-locking worm gear reduction system with oil bath lubrication, it ensures smooth operation in all weather conditions. The winch comes equipped with a safety brake for automatic mechanical load control, providing enhanced safety during operations. Its all-steel fabricated base offers maximum durability, meeting a minimum 5 to 1 structural safety factor for reliable performance.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
165 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
300 ft.
Specifications Line Speed
30 FPM
Specifications Motor
10 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
800 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
6000
Specifications Winch Height
18 inches
Specifications Winch Length
43 inches
Specifications Winch Width
18 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/2 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
