Rightway Model E2 Electric Heavy Duty Winch
Rightway Model E2 Electric Heavy Duty Winch
SKU:RIG-a279ed
Powerful 6000 lb Electric Heavy Duty Winch for lifting and pulling applications, designed for durability and safety in all conditions.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Rightway Model E2 Electric Heavy Duty Winch
$3,499.99
Quantity: 1
Claim Your Seller Account
Rightway Model E2 Electric Heavy Duty Winch
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

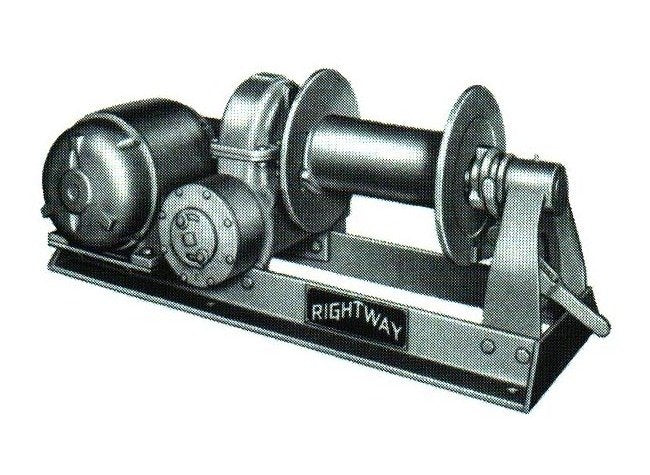

The Rightway Model E2 Electric Heavy Duty Winch is a powerhouse designed for demanding lifting and pulling applications. With a running capacity of 6000 lbs and a robust 7 1/2 HP motor, this winch is built for performance and durability. Equipped with a self-locking worm gear reduction system, automatic safety brake, and all-weather usability, it ensures safe and reliable operation in any condition. Additionally, the optional equipment such as Electric Motor Brake and Mechanical Torque Limiter enhance control and safety, making it ideal for institutional and government procurement needs.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
165 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
300 ft.
Specifications Line Speed
20 FPM
Specifications Motor
7 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
800 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
6000
Specifications Winch Height
18 inches
Specifications Winch Length
43 inches
Specifications Winch Width
18 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/2 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
