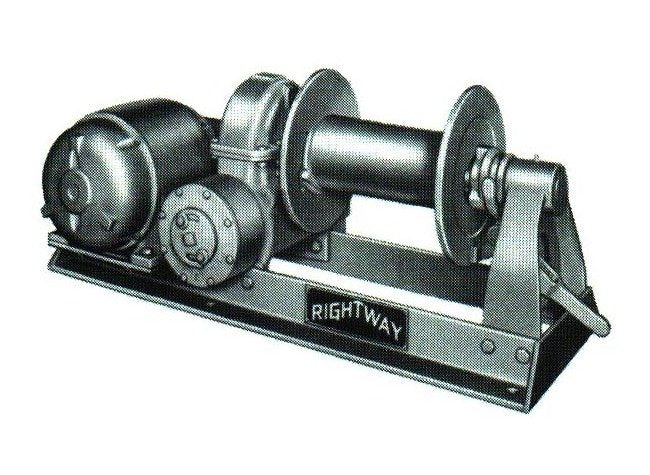

Rightway Model E2 Electric Heavy Duty Winches
Rightway Model E2 Electric Heavy Duty Winches
SKU:RIG-ad41b3
Get the Rightway Model E2 Winches for heavy-duty lifting and pulling with 15,000 lbs capacity, 30 HP motor, and automatic safety features for reliable performance.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Rightway Model E2 Electric Heavy Duty Winches
$8,999.99
Quantity: 1
Claim Your Seller Account
Rightway Model E2 Electric Heavy Duty Winches
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model E2 Electric Heavy Duty Winches are designed for optimal performance in demanding industrial applications. With a robust 30 HP motor and a running capacity of 15,000 lbs, these winches ensure efficient lifting and pulling operations. Featuring a self-locking worm gear reduction system with oil bath lubrication, all-weather usability, and an automatic mechanical load safety brake, these winches guarantee reliability and safety. The steel fabricated base offers maximum durability with a minimum 5 to 1 structural safety factor, making them ideal for heavy-duty tasks.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
250 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
400 ft.
Specifications Line Speed
30 FPM
Specifications Motor
30 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
2045 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
15000
Specifications Winch Height
29 inches
Specifications Winch Length
63 inches
Specifications Winch Width
25 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
3/4 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
