Rightway Model HC Horizontal Capstans
Rightway Model HC Horizontal Capstans
SKU:RIG-75315e

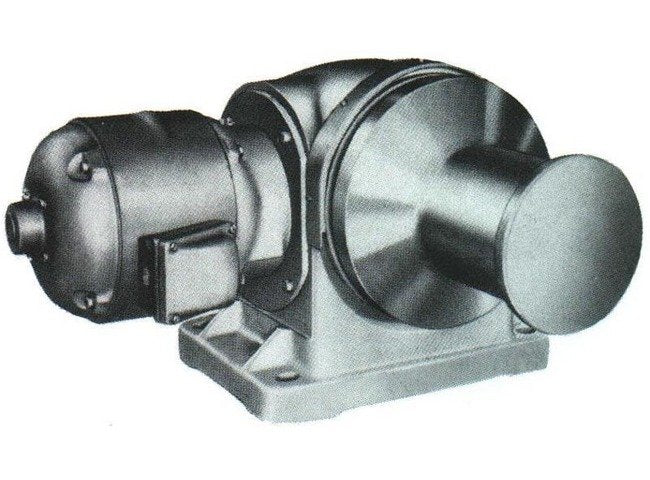

Heavy-duty Horizontal Capstans ideal for all-weather use, featuring fully enclosed power train, high torque motor, and solid all-steel construction.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Rightway Model HC Horizontal Capstans
$1,899.99
Quantity: 1
Claim Your Seller Account
Rightway Model HC Horizontal Capstans
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

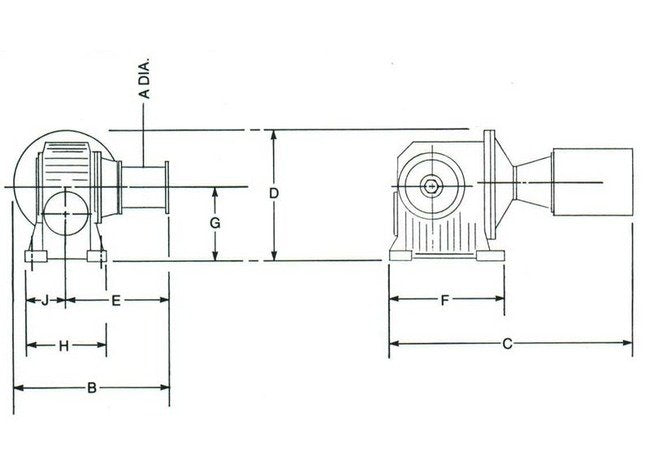

The Rightway Model HC Horizontal Capstans are built for all-weather use, featuring a fully enclosed power train with oil bath lubrication for optimal performance. Constructed with heavy-duty all-steel materials and a minimum 5 to 1 structural safety factor, these capstans provide high starting torque and reliability. With a pull capacity of 4000 lbs. (Starting) and 2000 lbs. (Running), a line speed of 25 FPM, and dimensions of A: 5", B: 19", C: 35", D: 15", E: 13 1/2", F: 11", G: 9", H: 9", J: 4 1/2", and a net weight of 270 lbs., these capstans are designed for durability and longevity.
Product Specifications
Specifications Dimension A
5 inches
Specifications Dimension B
19 inches
Specifications Dimension C
35 inches
Specifications Dimension D
15 inches
Specifications Dimension E
13 1/2 inches
Specifications Dimension F
11 inches
Specifications Dimension G
9 inches
Specifications Dimension H
9 inches
Specifications Dimension J
4 1/2 inches
Specifications Line Speed
25 FPM
Specifications Net Weight
270 lbs.
Specifications Pull Capacity Running
2000
Specifications Pull Capacity Starting
4000
Standard Features 0
All weather use is ideal for rightway capstans Fully enclosed power train oilbath lubrication All steel construction minimum 5 to 1 structural safety factor Totally enclosed motor high starting torque Heavy duty design solid construction for long life
