Rightway Model HC Horizontal Capstans
Rightway Model HC Horizontal Capstans
SKU:RIG-5abffa
Heavy-duty Rightway Model HC Horizontal Capstans for reliable performance in all conditions. Pull Capacity: 2000 lbs (Starting), 1000 lbs (Running).
Regular price
$1,899.00
Regular price
Sale price
$1,899.00
Unit price
per
Initiate Order
Rightway Model HC Horizontal Capstans
$1,899.00
Quantity: 1
Claim Your Seller Account
Rightway Model HC Horizontal Capstans
$1,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

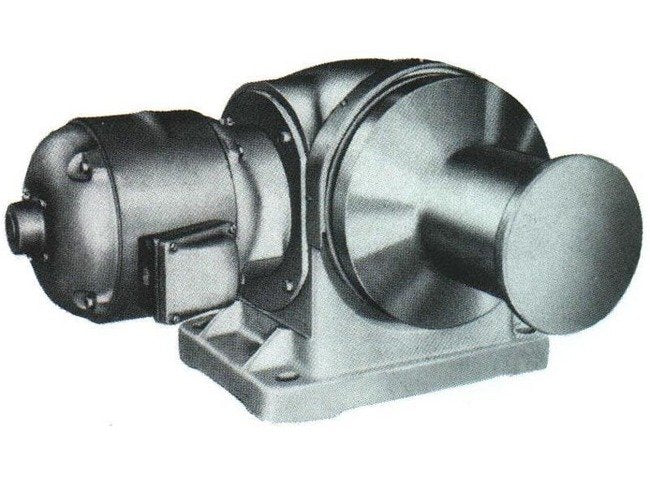

The Rightway Model HC Horizontal Capstans are designed for superior performance in all weather conditions, featuring fully enclosed power train with oilbath lubrication for maximum durability. Constructed with high-grade steel and a minimum 5 to 1 structural safety factor, these capstans offer a pull capacity of 2000 lbs (Starting) and 1000 lbs (Running) with a line speed of 40 FPM. The heavy-duty design, along with a totally enclosed motor providing high starting torque, ensures solid construction for a long service life.

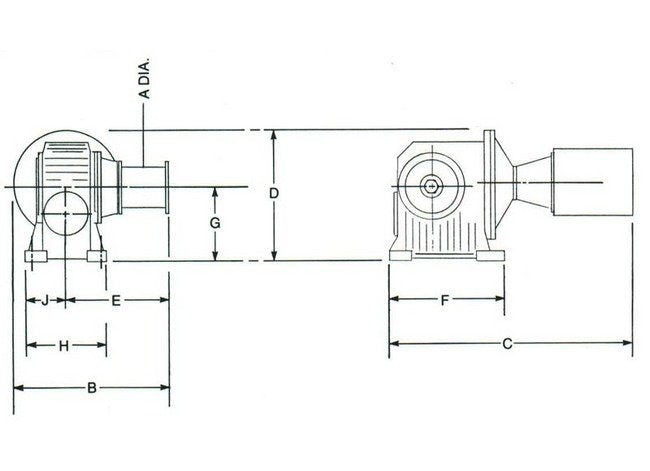

Product Specifications
Specifications Dimension A
4 inches
Specifications Dimension B
17 inches
Specifications Dimension C
27 inches
Specifications Dimension D
11 inches
Specifications Dimension E
13 1/2 inches
Specifications Dimension F
9 inches
Specifications Dimension G
7 inches
Specifications Dimension H
7 1/2 inches
Specifications Dimension J
3 1/2 inches
Specifications Line Speed
40 FPM
Specifications Net Weight
150 lbs.
Specifications Pull Capacity Running
1000
Specifications Pull Capacity Starting
2000
Standard Features 0
All weather use is ideal for rightway capstans Fully enclosed power train oilbath lubrication All steel construction minimum 5 to 1 structural safety factor Totally enclosed motor high starting torque Heavy duty design solid construction for long life
