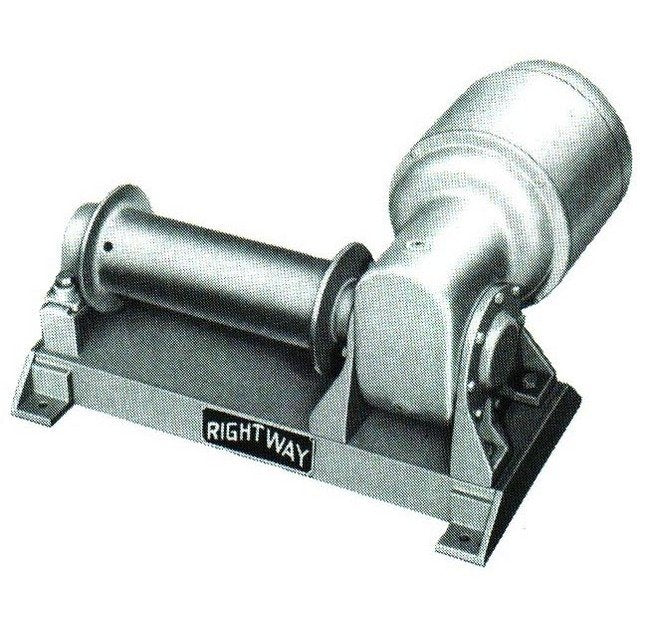

Rightway Model R Electric Winch
Rightway Model R Electric Winch
SKU:RIG-a31b78
Powerful Model R Electric Winch for lifting and pulling, featuring 500 lbs capacity, 50 FPM speed, and durable construction for all-weather use.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Rightway Model R Electric Winch
$899.99
Quantity: 1
Claim Your Seller Account
Rightway Model R Electric Winch
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model R Electric Winch is a versatile and durable solution suitable for both consumer and institutional buyers. With a running capacity of 500 lbs and a line speed of 50 FPM, this winch is designed for lifting and pulling applications. Its self-locking worm gear reduction, oilbath lubrication, and sealed roller bearings ensure reliable performance in all weather conditions. The winch features a 1 HP motor, various optional equipment such as grooved drums and limit switches, and multiple mounting options. Built with a minimum 5 to 1 structural safety factor, it meets the highest quality and safety standards for continuous use.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
220 ft.
Specifications Electrical Current
220/440 V-3-60
Specifications Full Drum
375 ft.
Specifications Line Speed
50 FPM
Specifications Motor
1 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
125 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
500
Specifications Winch Height
13 inches
Specifications Winch Length
20 inches
Specifications Winch Width
22 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/8 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floor Self-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
