Rightway Model R Electric Winch 500 lbs 25 FPM
Rightway Model R Electric Winch 500 lbs 25 FPM
SKU:RIG-3a6f6d
Versatile Rightway Model R Electric Winch - 500 lbs, 25 FPM, ideal for lifting and pulling applications. Durable, reliable, and all-weather use.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Rightway Model R Electric Winch 500 lbs 25 FPM
$899.99
Quantity: 1
Claim Your Seller Account
Rightway Model R Electric Winch 500 lbs 25 FPM
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

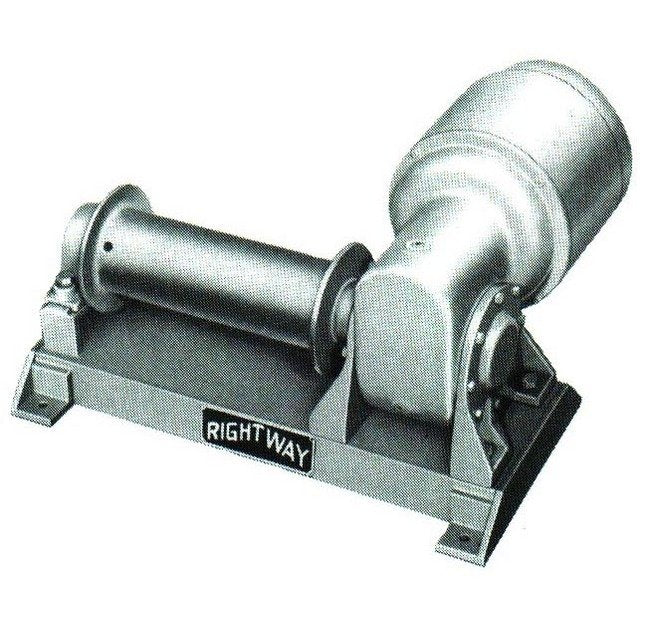

The Rightway Model R Electric Winch is a versatile solution for a variety of lifting and pulling applications. With a running capacity of 500 lbs and a line speed of 25 feet per minute, this winch is equipped with a 1 HP motor for reliable performance. The self-locking worm gear reduction and oilbath lubrication ensure smooth operation in any mounting position - ceiling, wall, or floor. Precision sealed roller bearings and a 5 to 1 structural safety factor guarantee durability and all-weather use. Additional optional equipment includes customized controls, grooved drums, electric motor brake, and safety limit switches for enhanced functionality.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
220 ft.
Specifications Electrical Current
110/220 V-1-60
Specifications Full Drum
375 ft.
Specifications Line Speed
25 FPM
Specifications Motor
1 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
140 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
500
Specifications Winch Height
15 inches
Specifications Winch Length
20 inches
Specifications Winch Width
21 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/8 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floor Self-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
