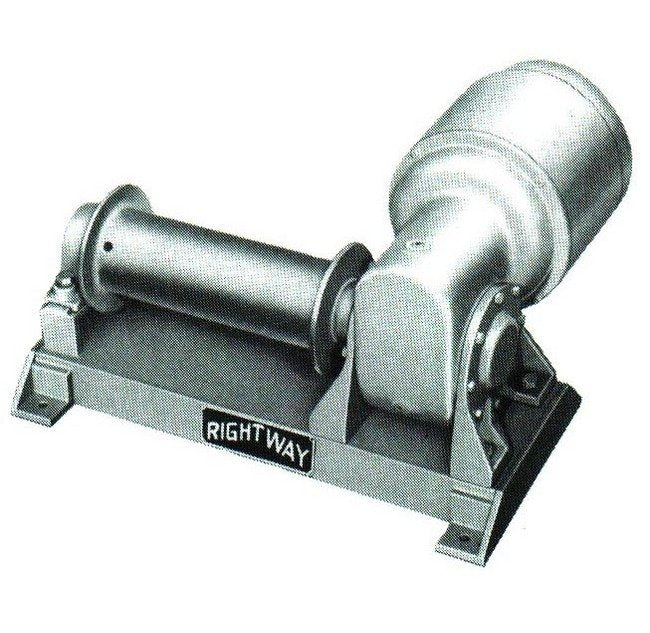

Rightway Model R Electric Winches
Rightway Model R Electric Winches
SKU:RIG-950cd0
Reliable electric winches for lifting and pulling, featuring 1000 lbs capacity, 25 FPM line speed, and durable construction.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Rightway Model R Electric Winches
$1,899.99
Quantity: 1
Claim Your Seller Account
Rightway Model R Electric Winches
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model R Electric Winches are reliable and versatile solutions for lifting and pulling applications. With a running capacity of 1000 lbs and a line speed of 25 FPM, these winches are engineered for durability and performance. Featuring a self-locking worm gear reduction system with oilbath lubrication, these winches are suitable for all-weather use. The winches come equipped with a 2 HP motor and precision sealed roller bearings, ensuring seamless operation with a minimum 5 to 1 structural safety factor. Optional equipment such as electric motor brakes and limit switches enhance operational safety and control.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
180 ft.
Specifications Electrical Current
220/440 V-3-60
Specifications Full Drum
245 ft.
Specifications Line Speed
25 FPM
Specifications Motor
2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
200 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
1000
Specifications Winch Height
15 inches
Specifications Winch Length
24 inches
Specifications Winch Width
23 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floor Self-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
