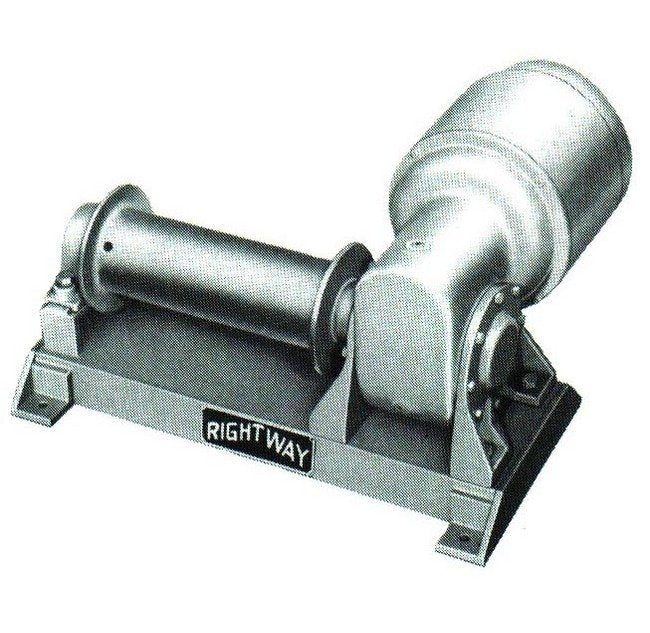

Rightway Model R Electric Winches
Rightway Model R Electric Winches
SKU:RIG-3164d1
Versatile electric winches with 500 lbs capacity, 25 FPM line speed, and rugged build for lifting and pulling applications.
Regular price
$1,299.00
Regular price
Sale price
$1,299.00
Unit price
per
Initiate Order
Rightway Model R Electric Winches
$1,299.00
Quantity: 1
Claim Your Seller Account
Rightway Model R Electric Winches
$1,299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model R Electric Winches are designed for versatile mounting positions on ceiling, wall, or floor, with self-locking worm gear reduction and oil bath lubrication for all-weather use. Featuring a rugged build with precision sealed roller bearings and a minimum 5 to 1 structural safety factor, these winches offer a running capacity of 500 lbs and a line speed of 25 FPM. With standard features like full drum capacity of 375 ft and a durable 1 HP motor, these winches are ideal for lifting and pulling applications, making them reliable for continuous operation.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
220 ft.
Specifications Electrical Current
220/440 V-3-60
Specifications Full Drum
375 ft.
Specifications Line Speed
25 FPM
Specifications Motor
1 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
125 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
500
Specifications Winch Height
13 inches
Specifications Winch Length
20 inches
Specifications Winch Width
22 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/8 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floor Self-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
