Rightway Model R Electric Winches 1000 lbs
Rightway Model R Electric Winches 1000 lbs
SKU:RIG-c90a32
Efficient and durable electric winches with 1000 lbs capacity, suitable for lifting and pulling applications in all weather conditions. Ideal for institutional use.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Rightway Model R Electric Winches 1000 lbs
$1,299.99
Quantity: 1
Claim Your Seller Account
Rightway Model R Electric Winches 1000 lbs
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

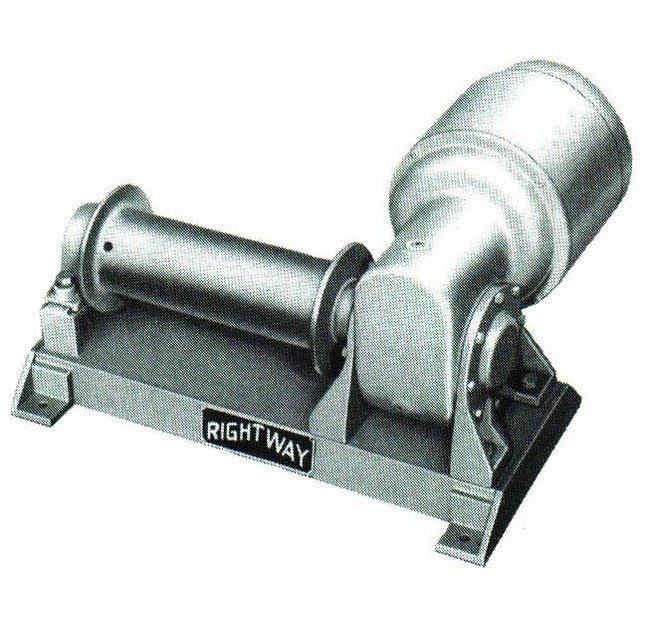

The Rightway Model R Electric Winches are engineered for durability and precision, featuring self-locking worm gear reduction with oil bath lubrication for all-weather use. Designed with a 5 to 1 structural safety factor, these winches boast a running capacity of 1000 lbs and a line speed of 25 FPM. Equipped with a 2 HP motor, precision sealed roller bearings, and a range of optional equipment for customized applications, these winches ensure reliable lifting and pulling operations. Ideal for institutional and government buyers requiring robust performance and safety compliance.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
180 ft.
Specifications Electrical Current
110/220 V-1-60
Specifications Full Drum
245 ft.
Specifications Line Speed
25 FPM
Specifications Motor
2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
220 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
1000
Specifications Winch Height
17 inches
Specifications Winch Length
24 inches
Specifications Winch Width
26 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floor Self-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
