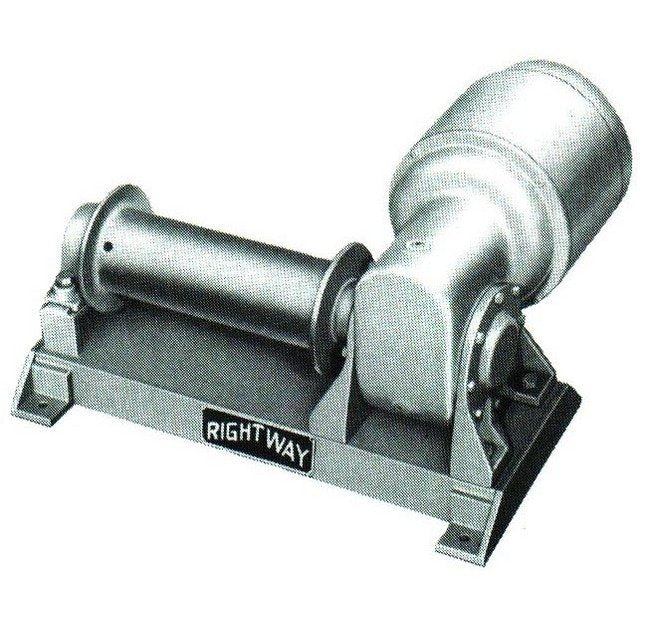

Rightway Model R Electric Winches
Rightway Model R Electric Winches
SKU:RIG-32db2a
Reliable and durable electric winches for lifting and pulling tasks, featuring self-locking worm gear reduction and precision sealed roller bearings.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Rightway Model R Electric Winches
$899.99
Quantity: 1
Claim Your Seller Account
Rightway Model R Electric Winches
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model R Electric Winches are versatile and durable, featuring self-locking worm gear reduction with oilbath lubrication suitable for all weather conditions. Precision sealed roller bearings ensure smooth operation with a minimum 5 to 1 structural safety factor. With a 1 HP motor and a running capacity of 500 lbs, these winches offer reliability and performance for lifting and pulling applications. Optional equipment includes controls tailored to specific needs, grooved drums, and safety features like slack line limit switch and mechanical torque limiter.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
220 ft.
Specifications Electrical Current
110/220 V-1-60
Specifications Full Drum
375 ft.
Specifications Line Speed
50 FPM
Specifications Motor
1 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
140 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
500
Specifications Winch Height
15 inches
Specifications Winch Length
20 inches
Specifications Winch Width
21 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/8 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floor Self-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
