Rightway Model RA Air Winch
Rightway Model RA Air Winch
SKU:RIG-3b9dd2
Powerful and durable air winch for lifting and pulling tasks, with a 2000 lbs capacity and versatile mounting options.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Rightway Model RA Air Winch
$1,499.99
Quantity: 1
Claim Your Seller Account
Rightway Model RA Air Winch
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

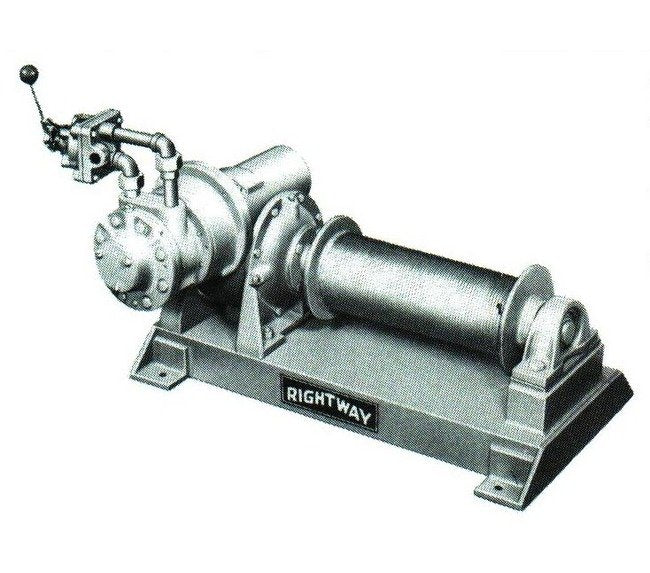

The Rightway Model RA Air Winch is a heavy-duty solution for lifting and pulling tasks with a running capacity of 2000 lbs. It features a self-locking worm gear reduction and oil bath lubrication for optimal performance in any weather conditions. Precision sealed roller bearings ensure durability for continuous operation, meeting a minimum 5 to 1 structural safety factor. This winch comes with standard features like multiple mounting options, control valves for seamless operation, and optional equipment including a pendant remote control and air pressure regulator.
Product Specifications
Specifications Air Requirement
125 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
165 ft.
Specifications Full Drum
275 ft.
Specifications Line Speed
40 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
200 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
2000
Specifications Winch Height
22 inches
Specifications Winch Length
25 inches
Specifications Winch Width
22 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
