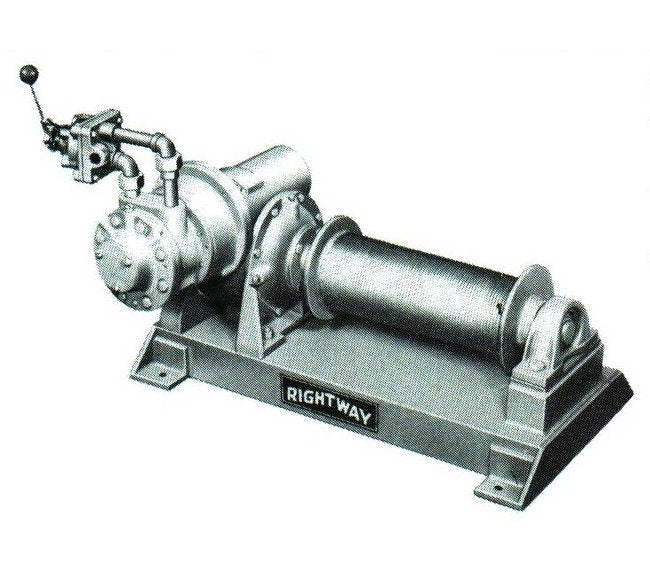

Rightway Model RA Air Winches
Rightway Model RA Air Winches
SKU:RIG-54c801
Rugged Model RA Air Winches designed for reliable all-day performance in lifting and pulling applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Rightway Model RA Air Winches
$899.99
Quantity: 1
Claim Your Seller Account
Rightway Model RA Air Winches
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model RA Air Winches are versatile and rugged, designed for all-weather use. With a self-locking worm gear reduction and precision sealed roller bearings, these winches ensure reliable performance day in and day out. Featuring a 5 to 1 structural safety factor, they meet the highest quality standards for lifting and pulling applications. Equipped with a variety of optional control features and compatible with electrical brakes, these winches provide unparalleled functionality for a wide range of needs.
Product Specifications
Specifications Air Requirement
30 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
220 ft.
Specifications Full Drum
375 ft.
Specifications Line Speed
25 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
115 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
500
Specifications Winch Height
19 inches
Specifications Winch Length
19 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/8 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
