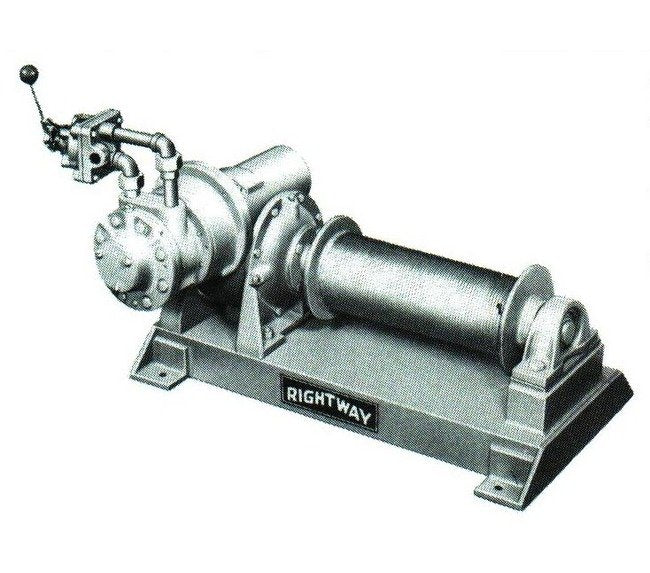

Rightway Model RA Air Winches
Rightway Model RA Air Winches
SKU:RIG-b55deb
Heavy-duty Rightway Model RA Air Winches with 1000 lbs running capacity and 50 FPM line speed. Ideal for lifting, pulling, and outdoor use.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Rightway Model RA Air Winches
$2,999.99
Quantity: 1
Claim Your Seller Account
Rightway Model RA Air Winches
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model RA Air Winches offer unparalleled durability and performance for both industrial and institutional applications. With a running capacity of 1000 lbs and a line speed of 50 FPM, these winches are built for heavy-duty lifting and pulling tasks. Featuring a self-locking worm gear reduction system with oilbath lubrication, these winches ensure reliable and smooth operation in any mounting position. The rugged quality design includes precision sealed roller bearings throughout, guaranteeing continuous operation with a minimum 5 to 1 structural safety factor. Ideal for all-weather use, these winches provide exceptional reliability and efficiency in demanding environments.
Product Specifications
Specifications Air Requirement
85 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
180 ft.
Specifications Full Drum
245 ft.
Specifications Line Speed
50 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
160 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
1000
Specifications Winch Height
21 inches
Specifications Winch Length
24 inches
Specifications Winch Width
21 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
