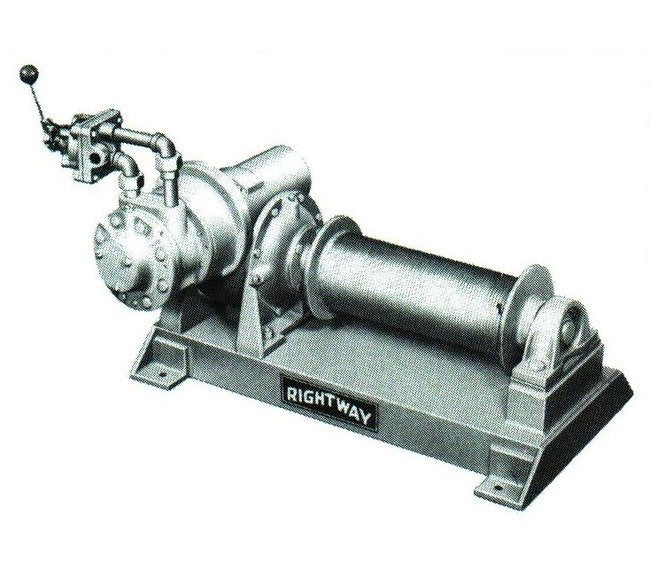

Rightway Model RA Air Winches
Rightway Model RA Air Winches
SKU:RIG-6423af
Reliable, durable air winches for lifting and pulling tasks, built for institutional and government use.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Rightway Model RA Air Winches
$1,299.99
Quantity: 1
Claim Your Seller Account
Rightway Model RA Air Winches
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model RA Air Winches are designed for reliability and durability in various mounting positions, offering a self-locking worm gear reduction system with oil bath lubrication for all-weather use. With rugged precision and sealed roller bearings, these winches are built to run continuously with a minimum 5 to 1 structural safety factor. Capable of handling up to 500 lbs with a line speed of 50 FPM, these winches come equipped with essential features such as an electrical brake, lever drum controls, and options for remote operation for lifting and pulling tasks. Ideal for institutional and government buyers requiring high-performance winches for diverse applications.
Product Specifications
Specifications Air Requirement
40 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
220 ft.
Specifications Full Drum
375 ft.
Specifications Line Speed
50 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
115 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
500
Specifications Winch Height
19 inches
Specifications Winch Length
19 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/8 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
