Rightway Model RPM Hoist
Rightway Model RPM Hoist
SKU:RIG-6c309f
Powerful 7 1/2-ton capacity RPM Hoist with advanced safety features for industrial lifting requirements.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Rightway Model RPM Hoist
$8,999.99
Quantity: 1
Claim Your Seller Account
Rightway Model RPM Hoist
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

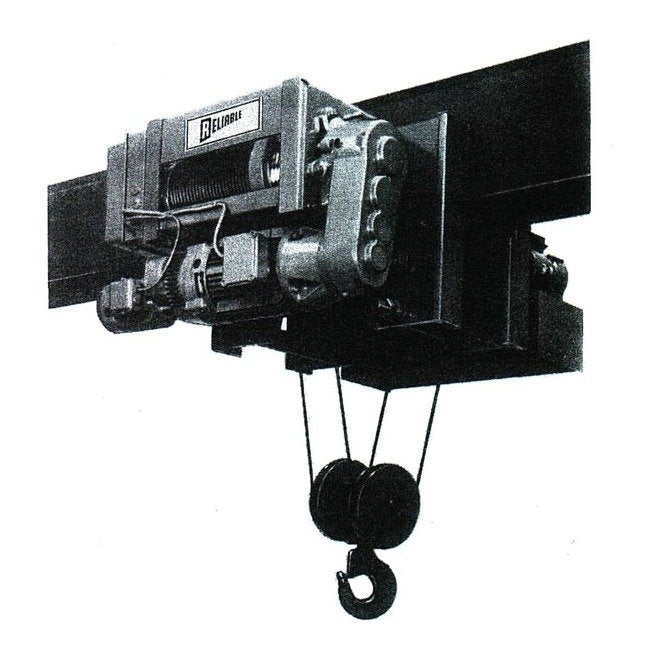

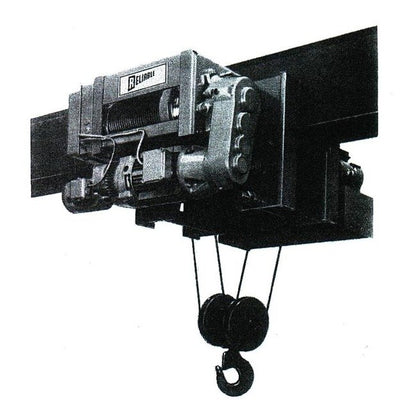

The Rightway Model RPM Low Headroom Monorail Hoists are engineered for reliable performance in industrial settings. With a robust 7 1/2-ton capacity and 12 1/2 HP hoist motor, these hoists are equipped with essential safety features including upper and lower limit switches, 250% torque hoist motor brake, and NEMA rated contactors. The low headroom construction, helical gearing for quiet operation, and trolley drive on both sides of the beam ensure efficient and smooth lifting operations. Certified to meet stringent industry standards, this hoist is a dependable tool for heavy-duty lifting needs.
Product Specifications
Specifications Cable Diameter
1/2 inches
Specifications Capacity
7 1/2 Tons

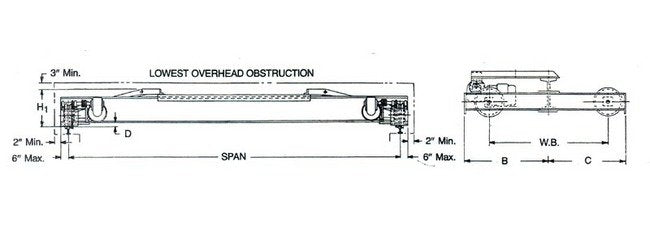

Specifications Head Room
28 inches
Specifications Hoists
12 1/2 HP
Specifications Hoist Speed
16
Specifications Lift
20'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
3/4 HP
Specifications Trolley Speed
60
Specifications Weight
1910 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
