Rightway Model RPM Low Headroom Monorail Hoists
Rightway Model RPM Low Headroom Monorail Hoists
SKU:RIG-ebab56
Experience top-notch efficiency with Rightway Model RPM Low Headroom Monorail Hoists. 2-ton capacity, durable construction, and advanced safety features.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Rightway Model RPM Low Headroom Monorail Hoists
$4,999.99
Quantity: 1
Claim Your Seller Account
Rightway Model RPM Low Headroom Monorail Hoists
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

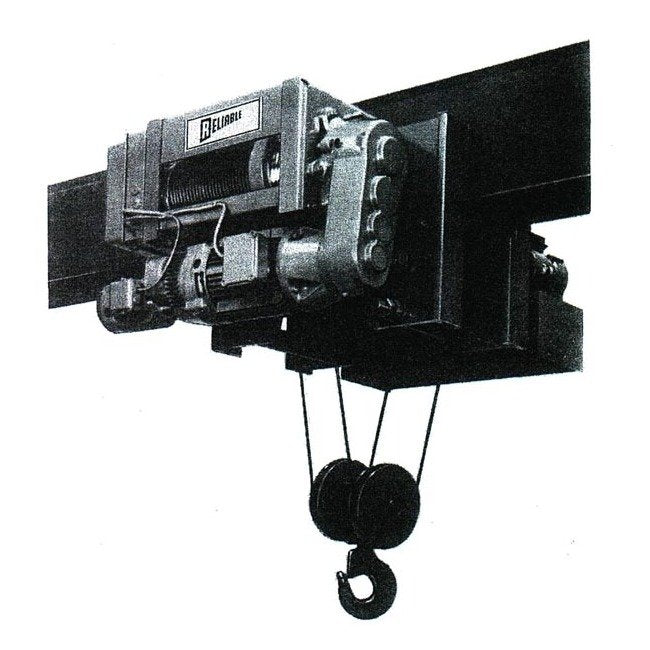

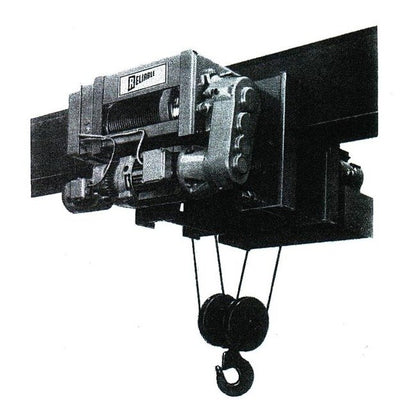

The Rightway Model RPM Low Headroom Monorail Hoists are engineered for efficiency and durability, ideal for heavy lifting applications with a capacity of 2 tons. Crafted with precision, these hoists boast 250% torque hoist motor brake, NEMA rated contactors, and no overhung gears or pinions, ensuring safe and reliable operation. Featuring a low headroom construction and helical gearing for quiet performance, these hoists are designed to maximize productivity without compromising on safety. With dual wound motors, motor overcurrent protection, and all-steel drum with machined grooves, these hoists deliver exceptional performance and longevity.
Product Specifications
Specifications Cable Diameter
3/16 inches
Specifications Capacity
2 Tons
Specifications Head Room
16 inches
Specifications Hoists
2 1/2 HP
Specifications Hoist Speed
16
Specifications Lift
20'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
1/3 HP
Specifications Trolley Speed
60
Specifications Weight
500 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
