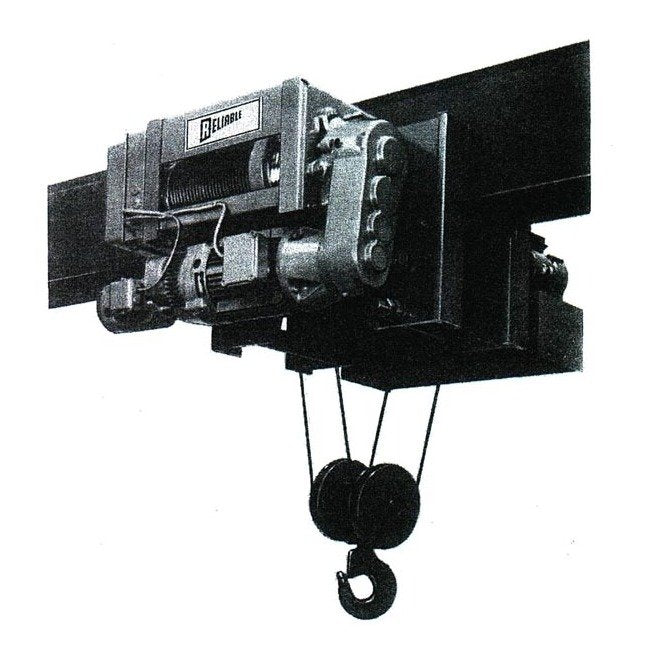

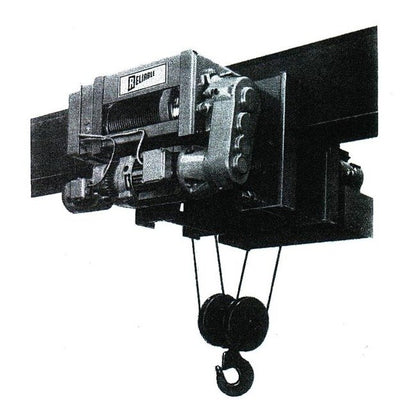

Rightway Model RPM Low Headroom Monorail Hoists
Rightway Model RPM Low Headroom Monorail Hoists
SKU:RIG-c79982
Heavy-duty and safe, Rightway Model RPM Low Headroom Monorail Hoists combine strength and reliability for efficient lifting operations.
Regular price
$12,999.00
Regular price
Sale price
$12,999.00
Unit price
per
Initiate Order
Rightway Model RPM Low Headroom Monorail Hoists
$12,999.00
Quantity: 1
Claim Your Seller Account
Rightway Model RPM Low Headroom Monorail Hoists
$12,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rightway Model RPM Low Headroom Monorail Hoists offer a superior lifting solution designed for heavy-duty applications. With a lifting capacity of 7 1/2 tons and a reliable hoist speed of 16 feet per minute, these hoists ensure efficient and safe material handling. Featuring essential safety elements like Upper and Lower Limit Switches, NEMA Rated Contactors, and a 250% Torque Hoist Motor Brake, these hoists prioritize operator well-being and equipment longevity. The low headroom construction, oil bath-operated gears, and helical gearing not only provide smooth and quiet operation but also contribute to the hoist's durability. The inclusion of a NEMA 1 Control Enclosure, dual wound motors, and safety features like Safety Drop Lugs on the Trolley emphasize adherence to industry standards and safety regulations.
Product Specifications
Specifications Cable Diameter
1/2 inches
Specifications Capacity
7 1/2 Tons

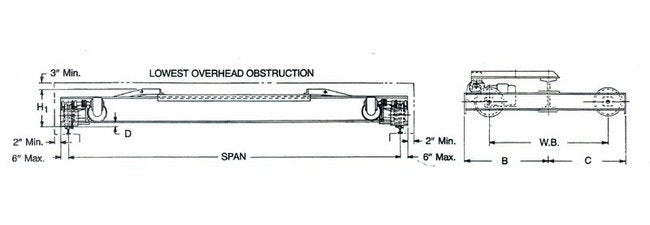

Specifications Head Room
28 inches
Specifications Hoists
12 1/2 HP
Specifications Hoist Speed
16
Specifications Lift
33'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
3/4 HP
Specifications Trolley Speed
60
Specifications Weight
2180 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
