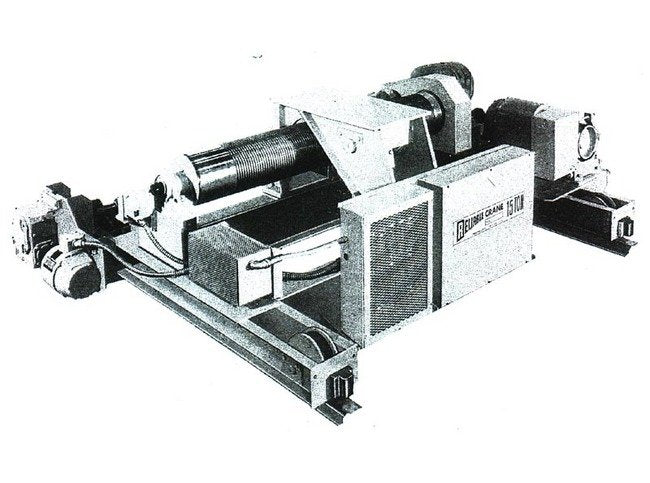

The Rightway Model RW Heavy Duty Built-Up Hoist Trolleys are expertly crafted to meet the rigorous demands of heavy lifting applications, boasting a 10-ton capacity. Precision 4140 steel trolley wheels ensure smooth operation, while the fabricated steel drum with deep machined grooves ensures durability and longevity. With a host of safety features including upper and lower limit switches, NEMA rated contactors, and motor protection mechanisms, these trolleys offer reliable and secure vertical lift solutions for industrial and institutional settings.
Product Specifications
Optional Features 0
Rubber or Spring Bumpers Longer Hook Lifts Pushbutton Station Eddy Current Variable Speed Hoist Control Three and Four Fixed Hoist Speeds with Constant Torque Solid State Soft Start Trolley Control Two (2) Speed or Variable Speed Trolley Centre NEMA 3R, 4 or 12 Control Enclosures DC Motors and Controls Explosion Proof Motors and Controls Spark Resistant Construction Power Circuit Upper Limit Switch Special Girder Gauge Drum Mounted Mechanical Load and Overspeed Safety Brake
Specifications Capacity
10 Tons

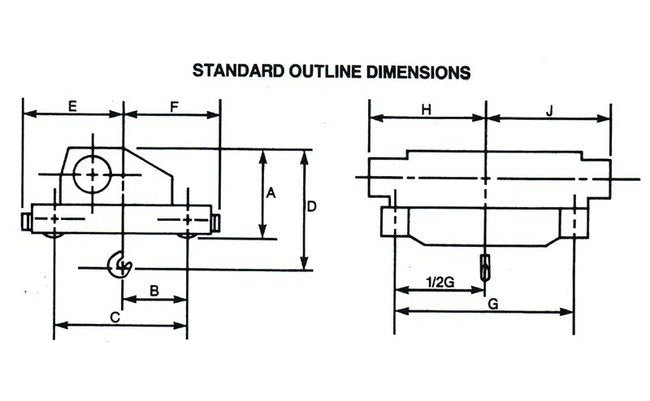

Specifications Dimension A
27 inches
Specifications Dimension B
27 1/2 inches
Specifications Dimension C
4'-6"
Specifications Dimension D
38 inches
Specifications Dimension E
35 inches
Specifications Dimension F
38 inches
Specifications Dimension G
6'-0" inches
Specifications Dimension H
4'-7"
Specifications Hoist Single Speed
15 HP
Specifications Hoist Speed Single Speed
20 FPM
Specifications Hoist Speed Two Speed
7/20 FPM
Specifications Hoist Two Speed
5/15 HP
Specifications Lift
22 ft.
Specifications Reeving
4PD-3/8"
Specifications Trolley Gage
6'-0"
Specifications Trolley Motor
1 HP
Specifications Trolley Speed
55
Specifications Weight
4175 lbs.
Specifications Wheel Diameter
8 inches
Standard Features Standard Features
One Piece Heavy Steel Weldment Trolley Frame Precision 4140 Steel Trolley Wheels Double Reeved for True Vertical Lift Fabricated Steel Drum with Deep Machined Grooves 10,000 Hour L-10 Bearing Life High Carbon Alloy Steel Sheaves 150% Disc Type Hoist Motor Brake Single-Two-Three and Four Speed Models Upper and Lower Geared Limit Switch Weight Operated Upper Safety Limit Switch All Steel Enclosed Lower Block All Sheaves Above Trolley Deck NEMA Rated Contactors NEMA Type 1 Control Enclosure 115 Volt Fused Control Circuit M.O.P. (Motor Overcurrent Protection) M.R.O.P. (Motor Running Overcurrent Protection) TENV, 30 Minute Rated Motors Legended Terminal Strips Mechanical and Regenerative Braking Ballast Resistors for Trolley Drive Spring Type Safety Latch on Hook Rail Sweeps Factory Reeved and Tested
