The Rightway Model VC Vertical Capstans are engineered for reliable performance in all weather conditions, featuring a fully enclosed power train with oil bath lubrication. With a robust all-steel construction and a minimum 5 to 1 structural safety factor, these capstans deliver high starting torque and a heavy-duty design for long-lasting durability. With a pull capacity of 2000 lbs. (Starting) and 1000 lbs. (Running), and a line speed of 40 FPM, these capstans are designed for efficiency and effectiveness in various applications.
Product Specifications

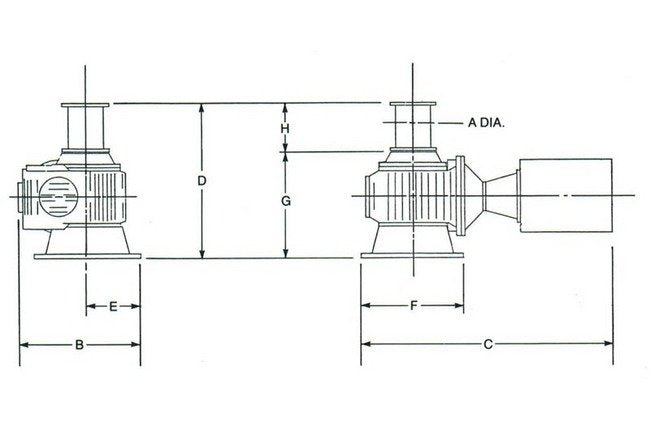

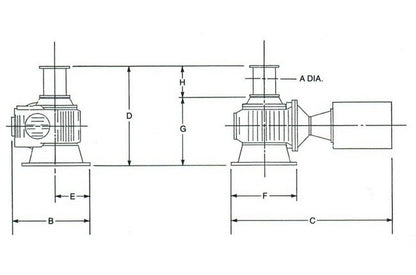

Specifications Dimension A
4 inches
Specifications Dimension B
14 1/2 inches
Specifications Dimension C
21 inches
Specifications Dimension D
13 1/2 inches
Specifications Dimension E
8 1/2 inches
Specifications Dimension F
8 inches
Specifications Dimension G
6 1/2 inches
Specifications Dimension H
7 inches
Specifications Line Speed
40 FPM
Specifications Net Weight
150 lbs.
Specifications Pull Capacity Running
1000
Specifications Pull Capacity Starting
2000
Standard Features 0
All weather use is ideal for rightway capstans Fully enclosed power train oilbath lubrication All steel construction minimum 5 to 1 structural safety factor Totally enclosed motor high starting torque Heavy duty design solid construction for long life
