Rightway RPM 10 Ton Low Headroom Monorail Hoists

Rightway RPM 10 Ton Low Headroom Monorail Hoists

SKU:RIG-406428

Heavy-duty 10 Ton Low Headroom Monorail Hoists with 250% torque motor brake, NEMA rated contactors, and quiet operation helical gearing. Ideal for industrial lifting applications.

Regular price $12,500.00
Regular price Sale price $12,500.00
Sale

Initiate Order

Rightway RPM 10 Ton Low Headroom Monorail Hoists

Rightway RPM 10 Ton Low Headroom Monorail Hoists

$12,500.00

Quantity: 1

Claim Your Seller Account

Rightway RPM 10 Ton Low Headroom Monorail Hoists

Rightway RPM 10 Ton Low Headroom Monorail Hoists

$12,500.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

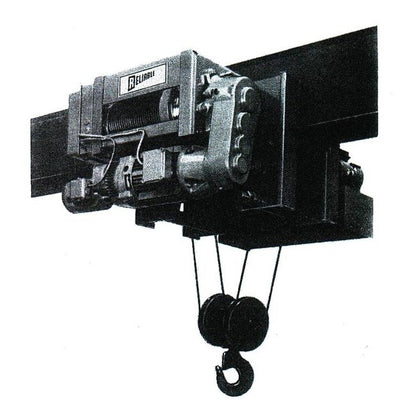

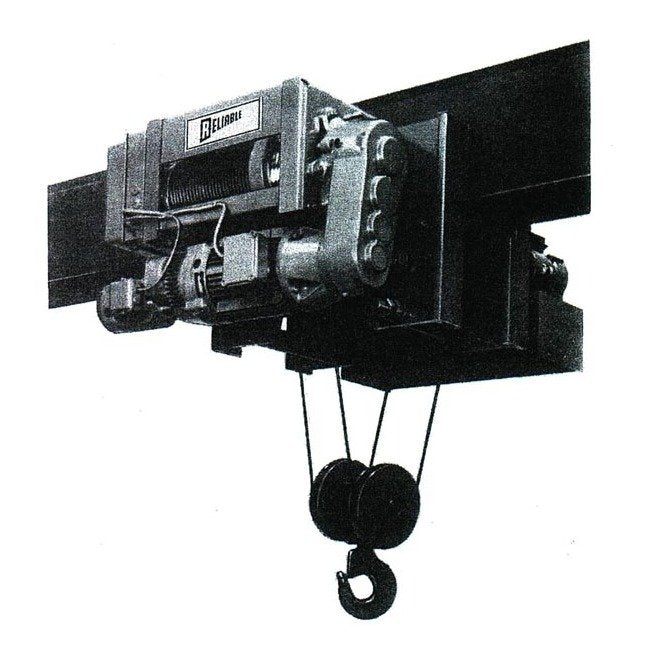

The Rightway RPM 10 Ton Low Headroom Monorail Hoists are designed for heavy-duty lifting applications with precision and safety in mind. With a capacity of 10 tons and a lift of 13 feet, these hoists feature a 250% torque hoist motor brake, NEMA rated contactors, and helical gearing for quiet operation. The low headroom construction and trolley drive on both sides of the beam make them versatile for various settings. Meeting stringent industry standards, including Motor Running Overcurrent Protection (M.R.O.P.) and Motor Overcurrent Protection (M.O.P.), these hoists ensure reliable performance in demanding environments.

Product Specifications

Specifications Cable Diameter
1/2 inches
Specifications Capacity
10 Tons
Specifications Head Room
28 inches
Specifications Hoists
12 1/2 HP
Specifications Hoist Speed
16
Specifications Lift
13'-0"
Specifications Options
2 Speed Hoist | 2 Speed Trolley | Special Lifts and Speeds | Overload Limit Switches
Specifications Reeving
4PS
Specifications Trolley Motor
3/4 HP
Specifications Trolley Speed
60
Specifications Weight
1975 lbs.
Standard Features 0
Upper and Lower Limit Switch 250% Torque Hoist Motor Brake NEMA Rated Contactors No Overhung Gears or Pinions Low Headroom Construction All Gears Operate In Oil Bath Helical Gearing For Quiet Operation Trolley Drive on Both Sides of Beam 100% Trolley Brake NEMA 1 Control Enclosure 115 Volt Fused Control Circuit 230/460-3-60 AC Dual Wound Motors TENV Class "F" Insulated Motors M.R.O.P. (Motor Running Overcurrent Protection) M.O.P. (Motor Overcurrent Protection) All Steel Drum with Machined Grooves Safety Drop Lugs on Trolley
