The Rightway RW 25T Heavy Duty Built-Up Hoist Trolley is a robust solution for vertical lift applications, featuring a one-piece heavy steel weldment trolley frame and precision 4140 steel trolley wheels. With a 25-ton capacity and 20 ft. lift, this hoist trolley ensures reliable performance. It includes high-quality components like 10,000-hour L-10 bearing life, high carbon alloy steel sheaves, and a fabricated steel drum with deep machined grooves. Designed for safety and efficiency, this trolley comes with standard features such as upper and lower geared limit switches, weight-operated upper safety limit switch, and all-steel enclosed lower block. Optional features like variable speed control and explosion-proof motors offer customization for diverse operational needs. From NEMA rated contactors to spring type safety latch, this hoist trolley meets stringent procurement standards for institutional buyers.
Product Specifications
Optional Features 0
Rubber or Spring Bumpers Longer Hook Lifts Pushbutton Station Eddy Current Variable Speed Hoist Control Three and Four Fixed Hoist Speeds with Constant Torque Solid State Soft Start Trolley Control Two (2) Speed or Variable Speed Trolley Centre NEMA 3R, 4 or 12 Control Enclosures DC Motors and Controls Explosion Proof Motors and Controls Spark Resistant Construction Power Circuit Upper Limit Switch Special Girder Gauge Drum Mounted Mechanical Load and Overspeed Safety Brake
Specifications Capacity
25 Tons

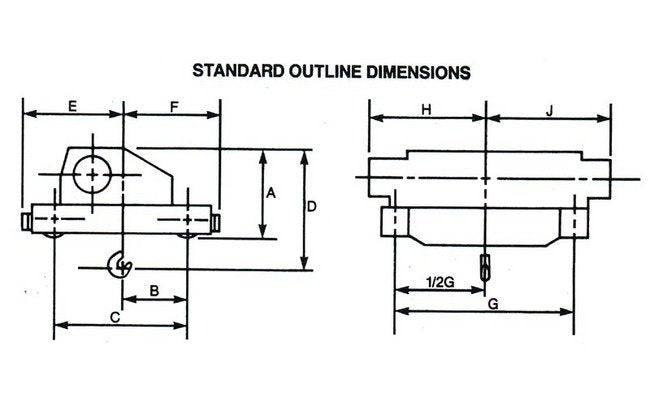

Specifications Dimension A
42 inches
Specifications Dimension B
29 inches
Specifications Dimension C
5'-9"
Specifications Dimension D
75 inches
Specifications Dimension E
51 inches
Specifications Dimension F
44 inches
Specifications Dimension G
6'-0" inches
Specifications Dimension H
5'-4"
Specifications Dimension J
4'-7"
Specifications Hoist Single Speed
20 HP
Specifications Hoist Speed Single Speed
9 FPM
Specifications Hoist Speed Two Speed
8/24 FPM
Specifications Hoist Two Speed
6.7/20 HP
Specifications Lift
20 ft.
Specifications Reeving
4PD-9/16"
Specifications Trolley Gage
6'-0"
Specifications Trolley Motor
2 HP
Specifications Trolley Speed
55
Specifications Weight
7200 lbs.
Specifications Wheel Diameter
12 inches
Standard Features Standard Features
One Piece Heavy Steel Weldment Trolley Frame Precision 4140 Steel Trolley Wheels Double Reeved for True Vertical Lift Fabricated Steel Drum with Deep Machined Grooves 10,000 Hour L-10 Bearing Life High Carbon Alloy Steel Sheaves 150% Disc Type Hoist Motor Brake Single-Two-Three and Four Speed Models Upper and Lower Geared Limit Switch Weight Operated Upper Safety Limit Switch All Steel Enclosed Lower Block All Sheaves Above Trolley Deck NEMA Rated Contactors NEMA Type 1 Control Enclosure 115 Volt Fused Control Circuit M.O.P. (Motor Overcurrent Protection) M.R.O.P. (Motor Running Overcurrent Protection) TENV, 30 Minute Rated Motors Legended Terminal Strips Mechanical and Regenerative Braking Ballast Resistors for Trolley Drive Spring Type Safety Latch on Hook Rail Sweeps Factory Reeved and Tested
