Rightway RW Heavy Duty Hoist Trolleys - 30 Ton Capacity
Rightway RW Heavy Duty Hoist Trolleys - 30 Ton Capacity
SKU:RIG-16b82e
Robust 30-ton capacity hoist trolley with precision steel wheels for industrial applications.
Regular price
$18,599.99
Regular price
Sale price
$18,599.99
Unit price
per
Initiate Order
Rightway RW Heavy Duty Hoist Trolleys - 30 Ton Capacity
$18,599.99
Quantity: 1
Claim Your Seller Account
Rightway RW Heavy Duty Hoist Trolleys - 30 Ton Capacity
$18,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

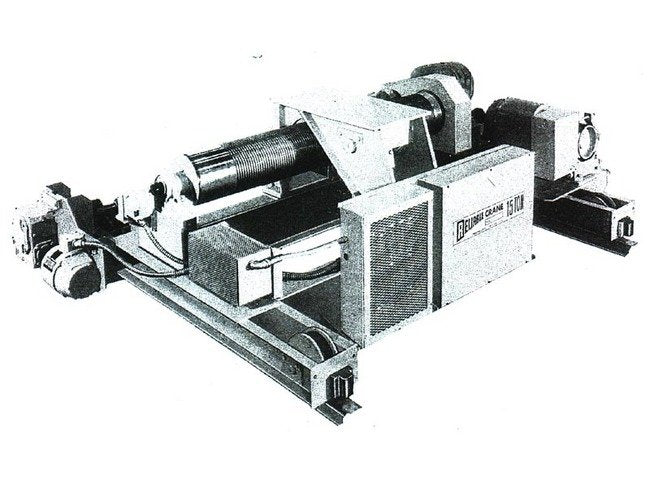

The Rightway RW Heavy Duty Hoist Trolley is a robust solution designed for heavy-duty industrial applications. With a 30 ton capacity, precision 4140 steel trolley wheels, double reeving for true vertical lift, and high carbon alloy steel sheaves, this trolley ensures reliable performance. It features a fabricated steel drum with deep machined grooves, multiple hoist speed options, and a range of safety features including upper and lower geared limit switches. Ideal for institutional and government buyers seeking durability and compliance with industry standards.
Product Specifications
Optional Features 0
Rubber or Spring Bumpers Longer Hook Lifts Pushbutton Station Eddy Current Variable Speed Hoist Control Three and Four Fixed Hoist Speeds with Constant Torque Solid State Soft Start Trolley Control Two (2) Speed or Variable Speed Trolley Centre NEMA 3R, 4 or 12 Control Enclosures DC Motors and Controls Explosion Proof Motors and Controls Spark Resistant Construction Power Circuit Upper Limit Switch Special Girder Gauge Drum Mounted Mechanical Load and Overspeed Safety Brake
Specifications Capacity
30 Tons

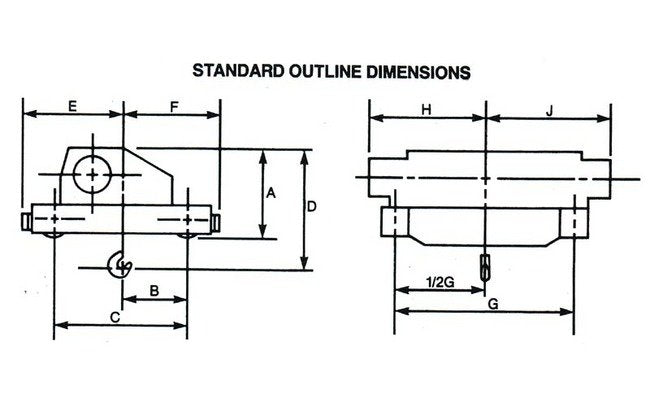

Specifications Dimension A
42 inches
Specifications Dimension B
29 inches
Specifications Dimension C
5'-9"
Specifications Dimension D
76 inches
Specifications Dimension E
51 inches
Specifications Dimension F
44 inches
Specifications Dimension G
8'-0" inches
Specifications Dimension H
6'-4"
Specifications Dimension J
5'-7"
Specifications Hoist Single Speed
35 HP
Specifications Hoist Speed Single Speed
16 FPM
Specifications Hoist Speed Two Speed
5/16 FPM
Specifications Hoist Two Speed
11/35 HP
Specifications Lift
27 ft.
Specifications Reeving
4PD-5/8"
Specifications Trolley Gage
8'-0"
Specifications Trolley Motor
3 HP
Specifications Trolley Speed
55
Specifications Weight
9950 lbs.
Specifications Wheel Diameter
12 inches
Standard Features Standard Features
One Piece Heavy Steel Weldment Trolley Frame Precision 4140 Steel Trolley Wheels Double Reeved for True Vertical Lift Fabricated Steel Drum with Deep Machined Grooves 10,000 Hour L-10 Bearing Life High Carbon Alloy Steel Sheaves 150% Disc Type Hoist Motor Brake Single-Two-Three and Four Speed Models Upper and Lower Geared Limit Switch Weight Operated Upper Safety Limit Switch All Steel Enclosed Lower Block All Sheaves Above Trolley Deck NEMA Rated Contactors NEMA Type 1 Control Enclosure 115 Volt Fused Control Circuit M.O.P. (Motor Overcurrent Protection) M.R.O.P. (Motor Running Overcurrent Protection) TENV, 30 Minute Rated Motors Legended Terminal Strips Mechanical and Regenerative Braking Ballast Resistors for Trolley Drive Spring Type Safety Latch on Hook Rail Sweeps Factory Reeved and Tested
