Rightway Series 100 Model LE Electric Winch
Rightway Series 100 Model LE Electric Winch
SKU:RIG-1bdea4
Powerful and reliable electric winch with high torque motor, automatic load holding brake, and all-steel construction.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Rightway Series 100 Model LE Electric Winch
$2,899.99
Quantity: 1
Claim Your Seller Account
Rightway Series 100 Model LE Electric Winch
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

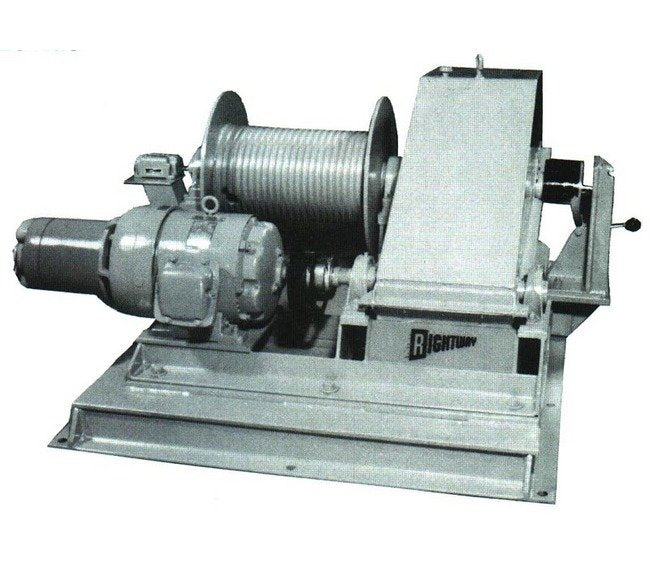

The Rightway Series 100 Model LE Electric Winch is a robust and efficient solution for lifting and pulling tasks. Featuring a high torque motor and automatic mechanical load holding brake, this winch ensures safe and reliable operation. With a durable all-steel construction and large diameter drums that increase wire rope life, this winch offers a minimum 5 to 1 structural safety factor. Ideal for all-weather use, this winch is designed to meet the demanding requirements of model LE applications, providing high performance with minimal horsepower consumption.
Product Specifications
Specifications Capacity Full Load Running
6000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 6 Layers
867 ft.
Specifications Drum Diameter
10 inches
Specifications Line Speed
45 FPM
Specifications Motor
10 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
950 lbs.
Specifications Optional Equipment
Grooved drums | Free spooling drums | Drum cable pressure roller for level winding assistance also prevents wire rope from uncoiling on drum when slack line occurs | Overspeed automatic load holding drum brake and electric shut-off | Torque limiter, mechanical (automatic resets when overload removed) | Rotary Geared Limit Switch - NEMA4 | Electric Motor Brake - (recommended for all hoisting applications)
Specifications Winch Height
22 inches
Specifications Winch Length
40 inches
Specifications Winch Width
28 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
430 ft.
Specifications Wire Rope Size
1/2 inches
Standard Features 0
Automatic mechanical load holding brake. Brake does not create heatTotal power train enclosed oil lubricated High torque crane and hoist duty motor starting capacity is minimum two (2) times running High efficiency power transmission lift more or faster with less horsepower required All weather use is ideal for model LE Large diameter drums increases wire rope life All steel construction minimum 5 to 1 structural safety factor
